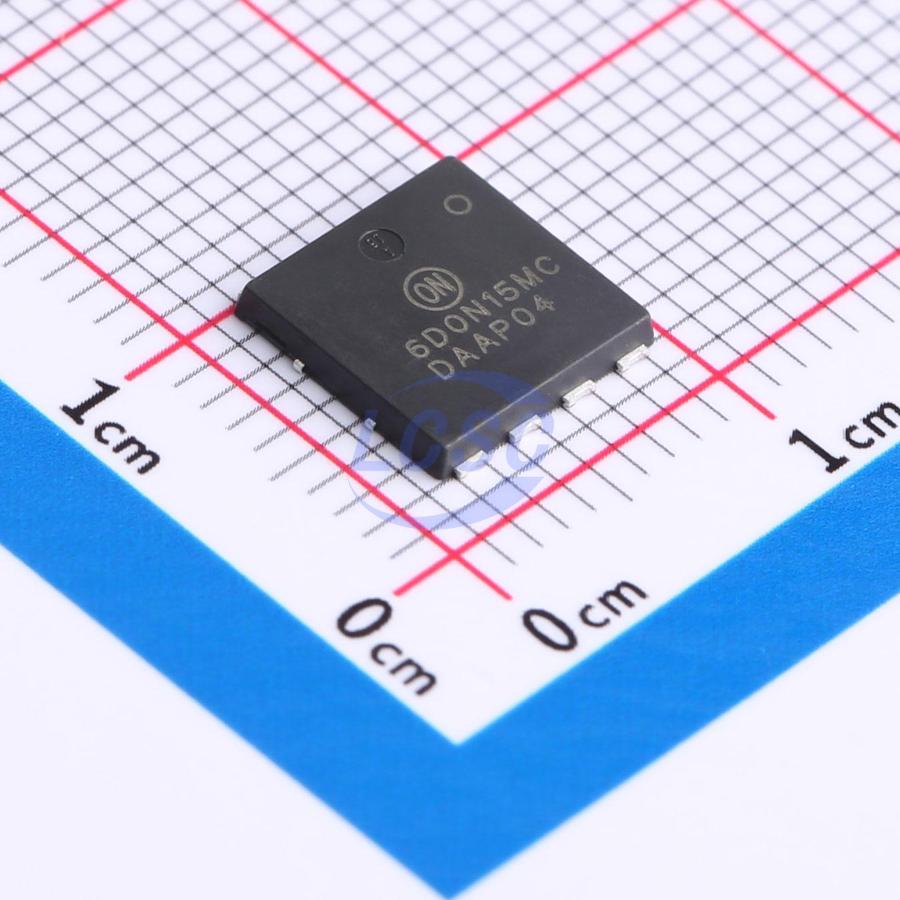

NTMTS6D0N15MC
N-Channel 150V 135A 245W Surface Mount PowerTDFN-8(7.9x8)
PowerTDFN-8(7.9x8)ROHS3 CompliantActive
MOSFET N-CH 150V 135A PowerTDFN-8(7.9x8)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMTS6D0N15MC
- Store part #
- C2902180
- Package / case
- PowerTDFN-8(7.9x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C2902180
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹571.71 | ₹571.71 |
| 10+ | ₹558.89 | ₹5,588.90 |
| 30+ | ₹523.70 | ₹15,711.00 |
| 100+ | ₹515.22 | ₹51,522.00 |
1 × ₹571.71
₹571.71
excl. GST
₹674.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTMTS6D0N15MC
₹571.71 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.482nF
- Ciss-Input Capacitance
- 4.815nF
- Pd - Power Dissipation
- 245W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 135A
- Reverse Transfer Capacitance (Crss)
- 9.7pF
- RDS(on)
- 6.9mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 58nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
SUPERFET III MOSFETs are a new series of high-voltage super-junction (SJ) MOSFETs utilizing charge balance technology, delivering excellent low on-resistance and low gate charge performance. This advanced technology is designed to minimize conduction losses, provide superior switching performance, and withstand extremely high dv/dt rates. As a result, the SUPERFET III MOSFET Easy Drive series helps address EMI issues, simplifying design implementation.
Applications
- Power Tools, Battery Operated Vacuums
- UAV/Drones, Material Handling
- BMS/Storage, Home Automation
Key features
- Small Footprint (8x8 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NVMTS6D0N15MC#C3277826onsemi · DFNW-8(8.3x8.4) | onsemi | DFNW-8(8.3x8.4) | On request | ₹490.89 · 0 in stock | View | |
 | NVMTS4D3N15MC#C2902189onsemi · PowerTDFN-8(7.9x8) | onsemi | PowerTDFN-8(7.9x8) | On request | ₹1,117.68 · 0 in stock | View |
| NVMTSC4D3N15MC#C3280341onsemi · TDFN-8-W(8.3x8.4) | onsemi | TDFN-8-W(8.3x8.4) | On request | ₹690.45 · 0 in stock | View | |
 | NTMTS4D3N15MC#C2902179onsemi · PowerTDFN-8(7.9x8) | onsemi | PowerTDFN-8(7.9x8) | On request | ₹1,380.76 · 0 in stock | View |
 | NTMTSC4D3N15MC#C2902181onsemi · TDFNW-8(8.3x8.4) | onsemi | TDFNW-8(8.3x8.4) | On request | ₹1,160.88 · 0 in stock | View |
