onsemiDatasheet (PDF)

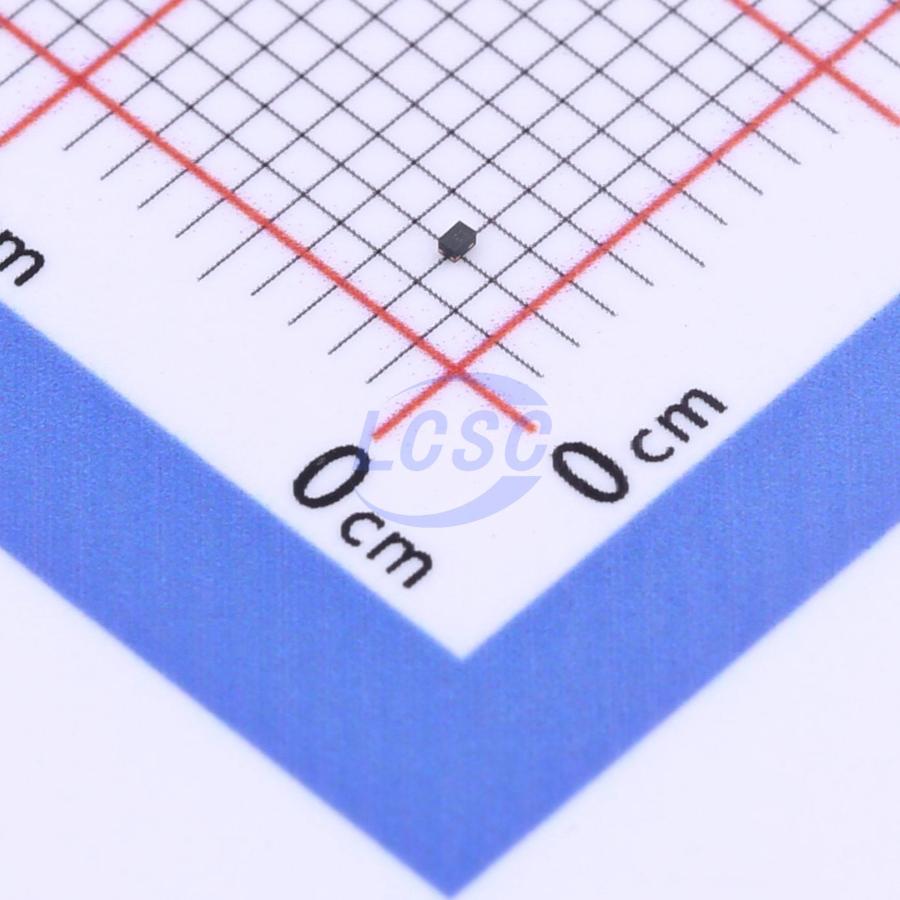

NTNS0K8N021ZTCG
N-Channel 20V 220mA 125mW Surface Mount XDFN-3(0.4x0.6)
XDFN-3(0.4x0.6)ROHS3 CompliantDiscontinued
MOSFET N-CH 20V 220mA XDFN-3(0.4x0.6)
- Manufacturer
- onsemi
- Manufacturer part #
- NTNS0K8N021ZTCG
- Store part #
- C896492
- Package / case
- XDFN-3(0.4x0.6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C896492
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.48 | ₹81.48 |
| 10+ | ₹66.27 | ₹662.70 |
| 30+ | ₹58.77 | ₹1,763.10 |
| 100+ | ₹51.27 | ₹5,127.00 |
| 500+ | ₹46.89 | ₹23,445.00 |
| 1,000+ | ₹44.60 | ₹44,600.00 |
1 × ₹81.48
₹81.48
excl. GST
₹96.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NTNS0K8N021ZTCG
₹81.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.4pF
- Ciss-Input Capacitance
- 12.3pF
- Pd - Power Dissipation
- 125mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 220mA
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 1.5Ω@4.5V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.009 g
Overview
This N-channel enhancement-mode power MOSFET is fabricated using onsemi's proprietary Planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-resistance and provide superior switching performance and high avalanche energy strength. These devices are suitable for switch-mode power supplies, audio amplifiers, DC motor controls, and variable switching power supply applications.
Applications
- Small Signal Load Switch
- High Speed Interfacing
- Level Shift
Key features
- Low Profile Ultra Small Package, XDFN3 (0.62 x 0.42 x 0.4 mm) for Extremely Space−Constrained Applications
- 1.5 V Gate Drive
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMN31D5UFO-7B#C5245316DIODES · X2-DFN0604-3 | DIODES | X2-DFN0604-3 | 5 | ₹30.48 · 5 in stock | View | |
 | DMN2990UFO-7B#C5245289DIODES · X2-DFN0604-3 | DIODES | X2-DFN0604-3 | 29 | ₹98.44 · 29 in stock | View |
