HXY MOSFETDatasheet (PDF)

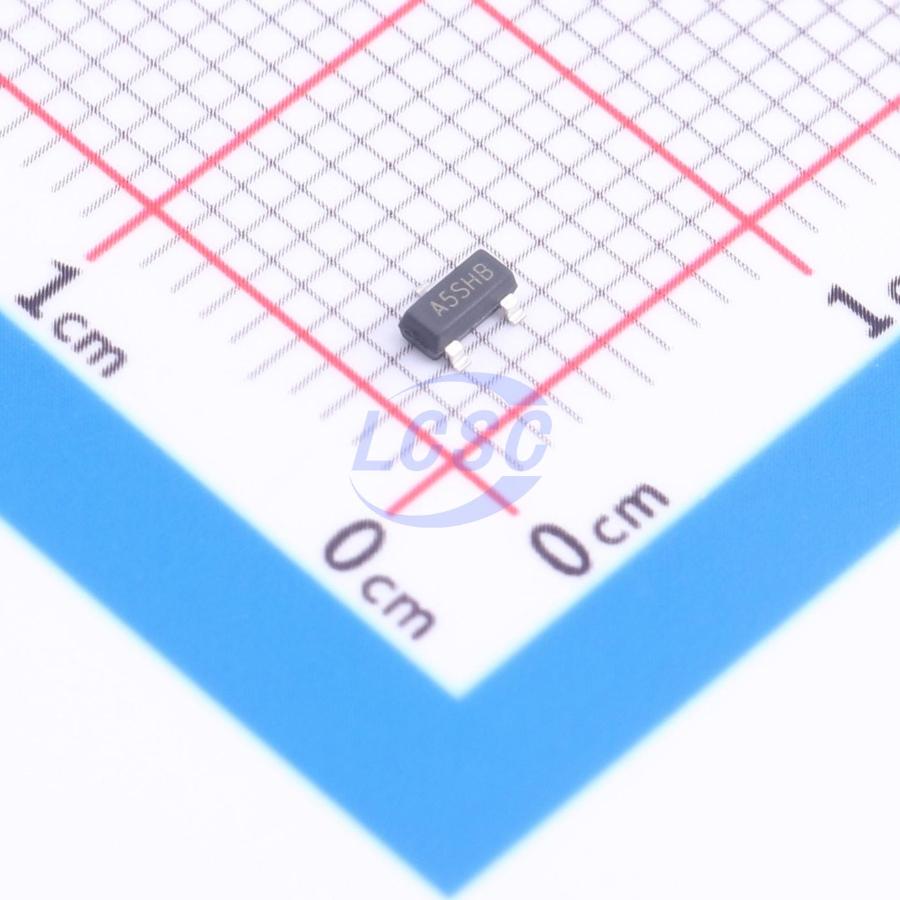

NTR3162PT1G-HXY
20V 4.2A 1.7W 48mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTR3162PT1G-HXY
- Store part #
- C54582422
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582422
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.20 | ₹61.00 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.64 | ₹1,296.00 |
| 500+ | ₹7.75 | ₹3,875.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹12.20
₹61.00
excl. GST
₹71.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTR3162PT1G-HXY
₹61.00 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 4.2A
- Pd - Power Dissipation
- 1.7W
- RDS(on)
- 48mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.8nC@4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The NTR3162PT1G utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications.
Applications
- PWM applications
- Load switching
- Power management
- SOT-23 package
- P-channel MOSFET
Key features
- VDS = -20V, ID = -4.2A
- RDS(ON): 55mΩ at VGS = -4.5V
- RDS(ON): 75mΩ at VGS = -2.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP2120U-HXY#C22367038HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 20 | ₹5.68 · 20 in stock | View |
 | IRLML6402GPBF-HXY#C22367041HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 290 | ₹7.50 · 290 in stock | View |
 | IRLML6402PBF-HXY#C22367042HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 760 | ₹8.07 · 760 in stock | View |
 | HNTR3A085PZ#C42401269HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 500 | ₹7.85 · 500 in stock | View |
 | HDMG2305UXQ7#C42401384HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 2,960 | ₹4.54 · 2,960 in stock | View |
