HXY MOSFETDatasheet (PDF)

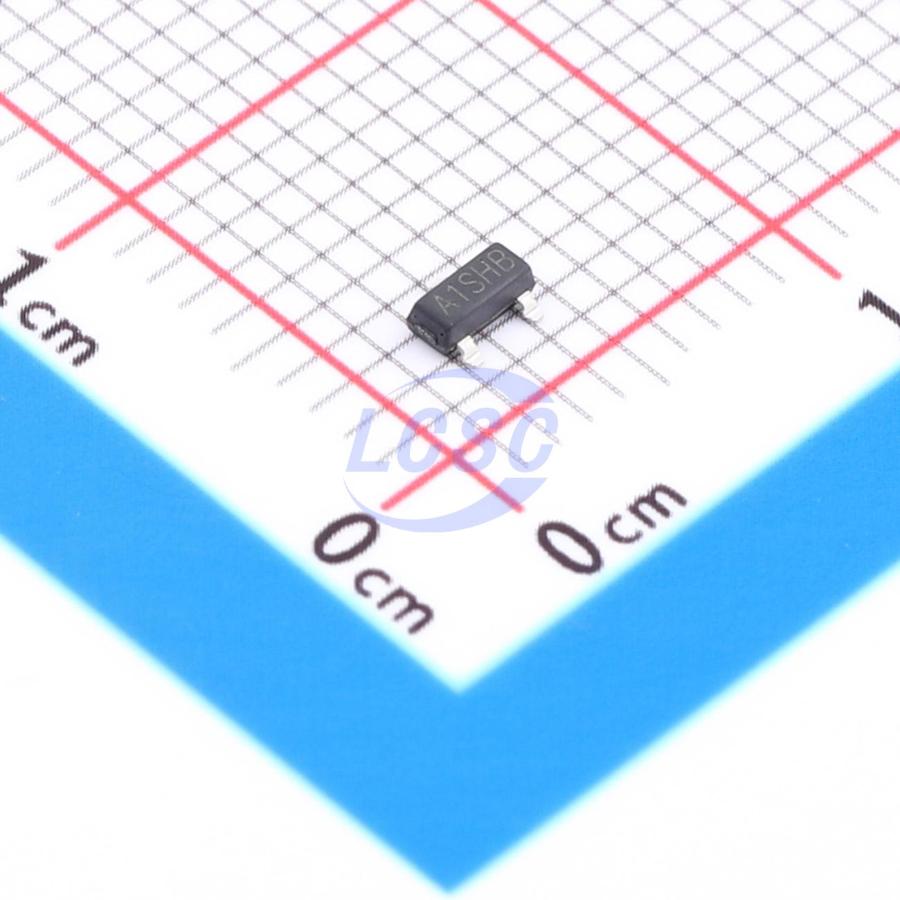

NTR4101PT1H-HXY
20V 3A 1W 60mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTR4101PT1H-HXY
- Store part #
- C54582403
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C54582403
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.48 | ₹152.40 |
| 50+ | ₹24.41 | ₹1,220.50 |
| 150+ | ₹21.82 | ₹3,273.00 |
| 500+ | ₹18.57 | ₹9,285.00 |
| 3,000+ | ₹15.32 | ₹45,960.00 |
| 6,000+ | ₹14.45 | ₹86,700.00 |
5 × ₹30.48
₹152.40
excl. GST
₹179.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTR4101PT1H-HXY
₹152.40 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3A
- Output Capacitance(Coss)
- 75pF
- Pd - Power Dissipation
- 1W
- RDS(on)
- 60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 3.3nC@2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The NTR4101PT1H utilizes advanced trench technology to deliver excellent on-resistance RDS(ON). This device is suitable for use as a load switch or in PWM applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage V<sub>DS</sub> = -20V, drain current I<sub>D</sub> = -3A
- On-resistance R<sub>DS(ON)</sub> < 80mΩ at gate-source voltage V<sub>GS</sub> = -4.5V
