onsemiDatasheet (PDF)

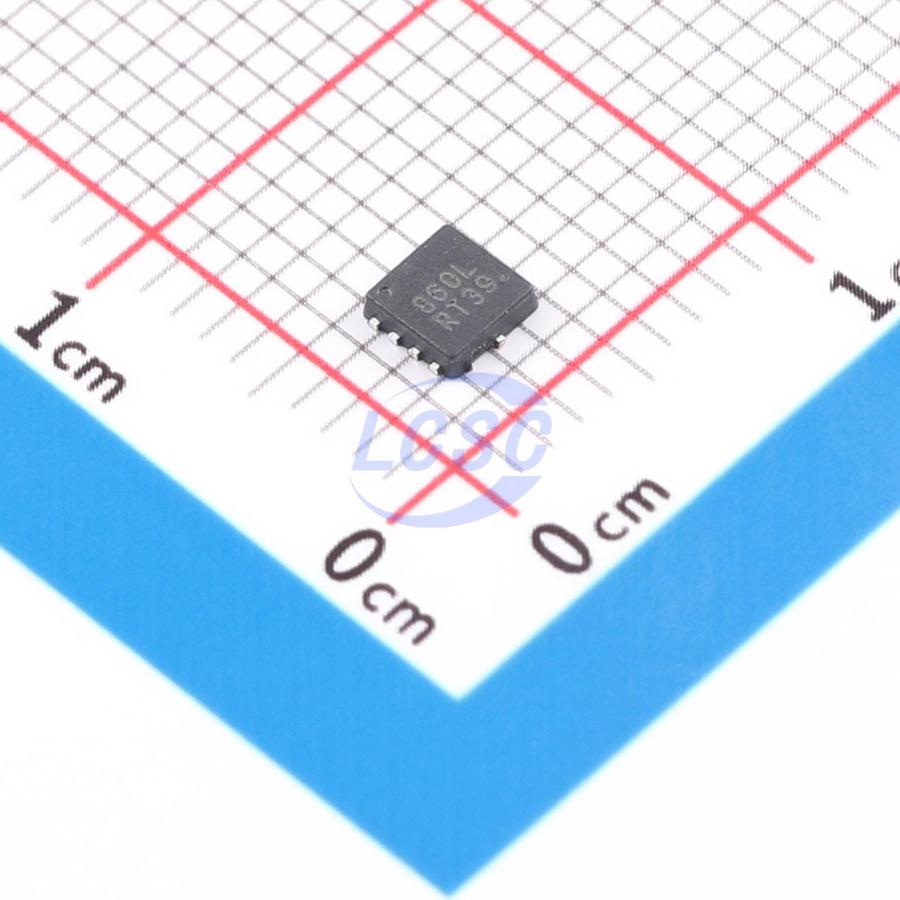

NTTFS6H860NLTAG
42W 80V 30A 16.5mΩ@10V 1 N-channel N-Channel WDFN-8(3x3) Single FETs, MOSFETs RoHS
WDFN-8(3x3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTTFS6H860NLTAG
- Store part #
- C900365
- Package / case
- WDFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
111 in stock
#C900365
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.95 | ₹117.95 |
| 10+ | ₹115.99 | ₹1,159.90 |
| 30+ | ₹114.68 | ₹3,440.40 |
| 100+ | ₹113.16 | ₹11,316.00 |
1 × ₹117.95
₹117.95
excl. GST
₹139.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTTFS6H860NLTAG
₹117.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 83pF
- Ciss-Input Capacitance
- 610pF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 16.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.494 g
Overview
Key features
- Compact package (3.3 x 3.3 mm) for space-constrained designs
- Low RDS(on) to minimize conduction losses
- Low capacitance to minimize switching losses
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD19537Q3T-VB#C52110031VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 6 | ₹111.03 · 6 in stock | View |
 | CSD19537Q3-VB#C52110032VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 35 | ₹111.03 · 35 in stock | View |
 | PXN011-100QLJ-VB#C52148625VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹174.38 · 10 in stock | View |
 | ISZ080N10NM6-VB#C52711413VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 5 | ₹110.58 · 5 in stock | View |
 | BSZ096N10LS5-VB#C52711414VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 5 | ₹110.58 · 5 in stock | View |
