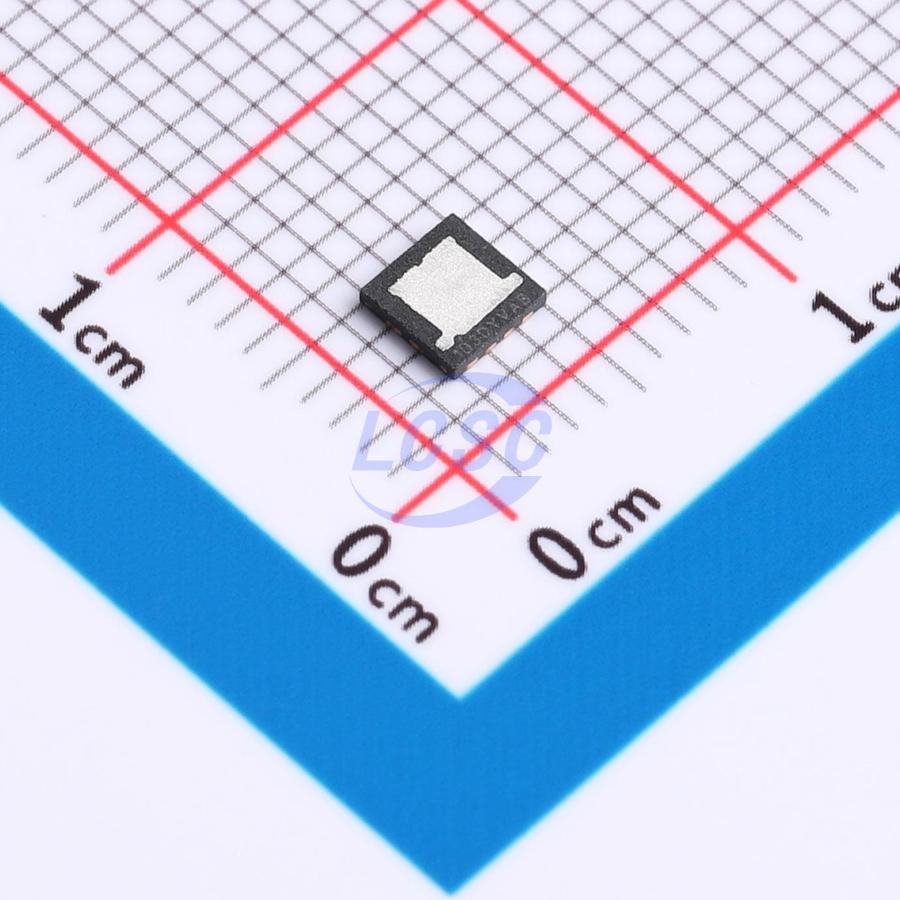

NTTFSSCH1D3N04XL
107W 40V 207A 1mΩ@10V 1 N-channel N-Channel WDFN-9(3.3x3.3) Single FETs, MOSFETs
WDFN-9(3.3x3.3)RoHSActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTTFSSCH1D3N04XL
- Store part #
- C48538070
- Package / case
- WDFN-9(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C48538070
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹696.63 | ₹696.63 |
| 10+ | ₹686.00 | ₹6,860.00 |
| 30+ | ₹678.86 | ₹20,365.80 |
| 100+ | ₹671.70 | ₹67,170.00 |
1 × ₹696.63
₹696.63
excl. GST
₹822.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTTFSSCH1D3N04XL
₹696.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 920pF
- Ciss-Input Capacitance
- 3.48nF
- Pd - Power Dissipation
- 107W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 207A
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
Applications
- High-frequency switching DC-DC conversion
- Synchronous rectifier
Key features
- Advanced source-down center-gate dual-cooling package (3.3×3.3mm) for superior thermal performance
- Low RDS(on) to minimize conduction losses
- Low QRR and soft recovery characteristics to minimize reverse recovery losses and voltage spikes
- Low QG and capacitance to minimize gate drive and switching losses
- Lead-free, halogen-free/BFR-free, and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IQE013N04LM6CGATMA1#C3020632Infineon · TTFN-9-1 | Infineon | TTFN-9-1 | On request | ₹404.57 · 0 in stock | View |
 | IQDH88N06LM5CGATMA1#C19674127Infineon · TTFN-9 | Infineon | TTFN-9 | 9 | ₹748.38 · 9 in stock | View |
 | IQD005N04NM6CGATMA1#C20191636Infineon · TTFN-9 | Infineon | TTFN-9 | 95 | ₹726.67 · 95 in stock | View |
