NexperiaDatasheet (PDF)

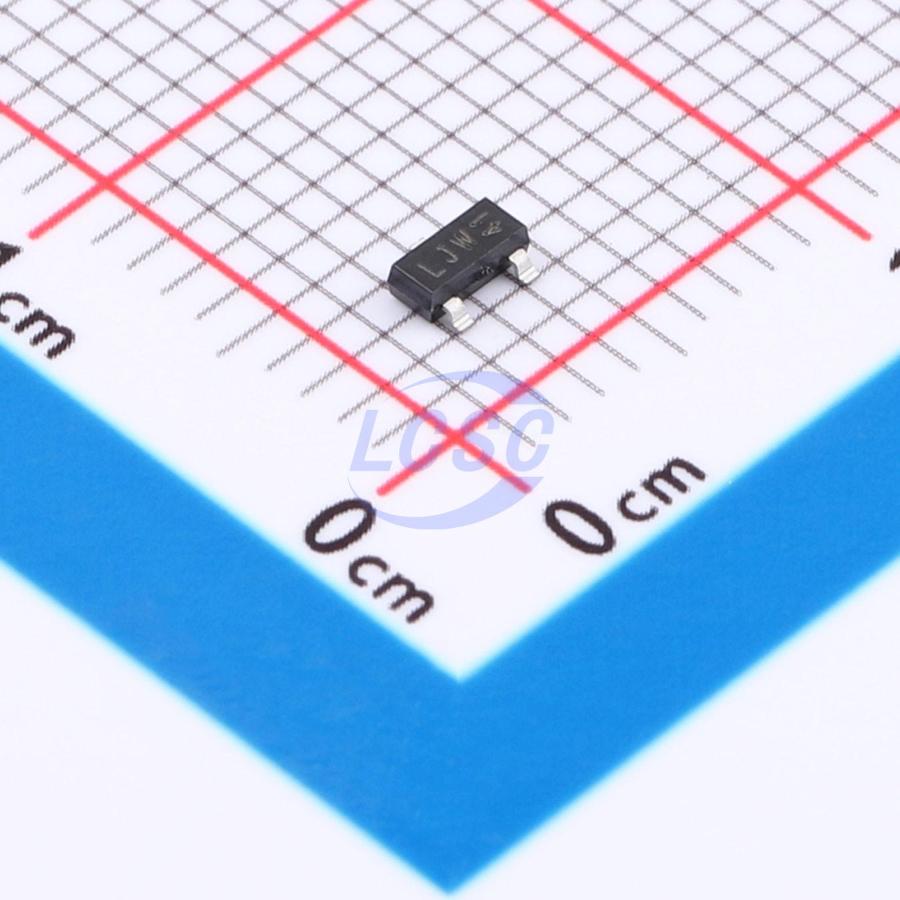

NUP1301
SOT23 TVS Diodes
SOT23RoHSActive
- Manufacturer
- Nexperia
- Manufacturer part #
- NUP1301
- Store part #
- C37136361
- Package / case
- SOT23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C37136361
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.67 | ₹58.35 |
| 50+ | ₹9.16 | ₹458.00 |
| 150+ | ₹7.91 | ₹1,186.50 |
| 500+ | ₹6.97 | ₹3,485.00 |
| 3,000+ | ₹6.22 | ₹18,660.00 |
| 6,000+ | ₹5.85 | ₹35,100.00 |
5 × ₹11.67
₹58.35
excl. GST
₹68.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP1301
₹58.35 for 5 + GST
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Ultra low capacitance ElectroStatic Discharge (ESD) protection array in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package designed to protect one signal line in rail-to-rail configuration from the damage caused by ESD and other transients.
Applications
- Telecommunication networks
- Video line protection
- Microcontroller protection
- I²C-bus protection
- Antenna power supply
- Analog audio
- Class-D amplifier
Key features
- ESD protection of one signal line (rail-to-rail configuration)
- Ultra low diode capacitance: Cd = 0.6 pF
- Very low reverse leakage current: ≤30 nA
- ESD protection up to 30 kV
- IEC 61000-4-2; level 4 (ESD)
- IEC 61000-4-5 (surge); lPPM = 11 A at tp = 8/20 μs
