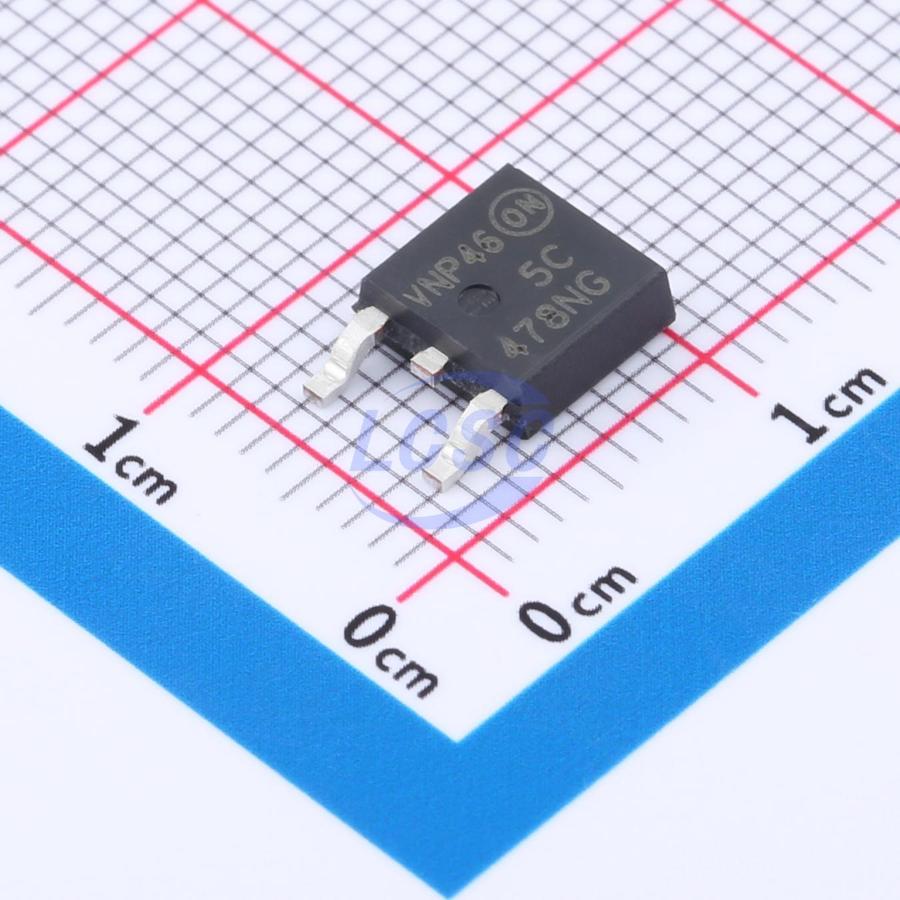

NVD5C478NT4G
N-Channel 40V 14A 43A 3W 30W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantDiscontinued
MOSFET N-CH 40V 14A 43A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- NVD5C478NT4G
- Store part #
- C887739
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C887739
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.73 | ₹162.73 |
| 10+ | ₹159.25 | ₹1,592.50 |
| 30+ | ₹156.80 | ₹4,704.00 |
| 100+ | ₹154.55 | ₹15,455.00 |
1 × ₹162.73
₹162.73
excl. GST
₹192.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVD5C478NT4G
₹162.73 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 840pF
- Pd - Power Dissipation
- 3W;30W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 14A;43A
- Reverse Transfer Capacitance (Crss)
- 24pF
- RDS(on)
- 8.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
Key features
- Low on-resistance R<sub>DS(on)</sub> to minimize conduction loss
- Low gate charge Q<sub>G</sub> and capacitance to minimize driving loss
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVD5C446NT4G#C604534onsemi · TO-252(DPAK) | onsemi | TO-252(DPAK) | 1 | ₹128.97 · 1 in stock | View |
 | SUD50N04-8M8P-4GE3#C727527VISHAY · TO-252 | VISHAY | TO-252 | 30 | ₹228.31 · 30 in stock | View |
| NVDS015N15MCT4G#C887747onsemi · DPAK | onsemi | DPAK | 19 | ₹476.31 · 19 in stock | View | |
 | IPD50N04S408ATMA1#C3289166Infineon · TO-252-3-313 | Infineon | TO-252-3-313 | 3 | ₹292.82 · 3 in stock | View |
| NVD5C454NLT4G#C604535onsemi · DPAK | onsemi | DPAK | 5 | ₹295.98 · 5 in stock | View | |
