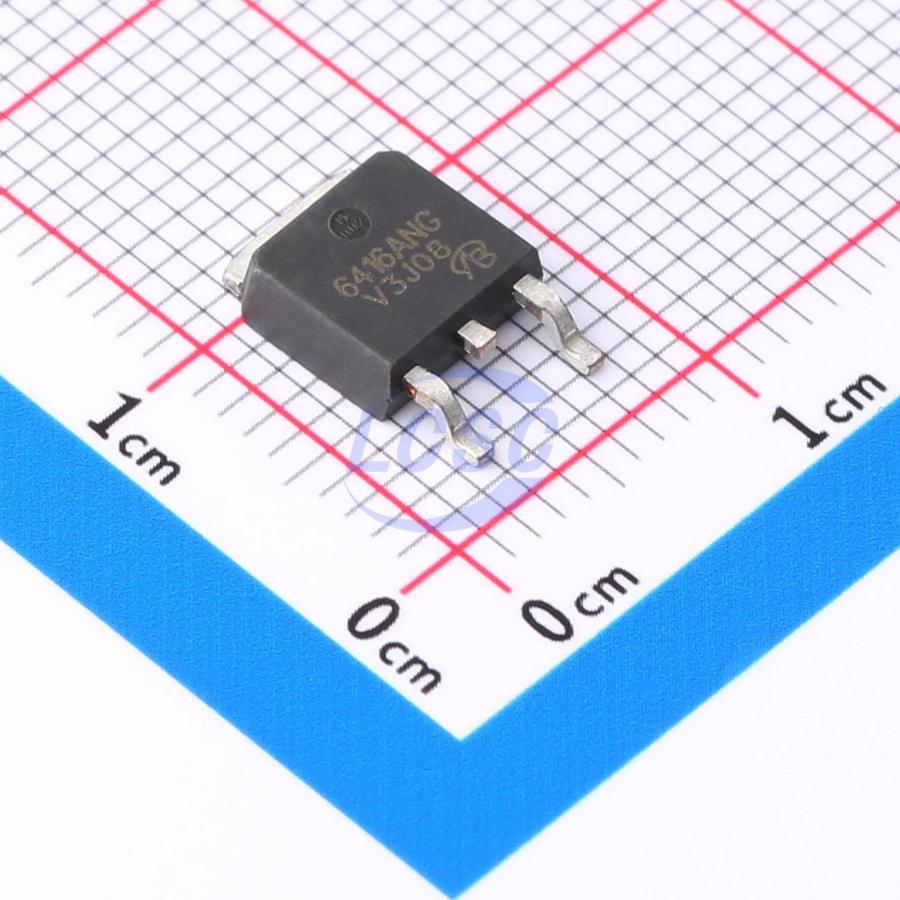

NVD6416ANT4G-VB
N-Channel 100V 25A 83W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 25A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NVD6416ANT4G-VB
- Store part #
- C19188114
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C19188114
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.72 | ₹93.72 |
| 10+ | ₹76.30 | ₹763.00 |
| 30+ | ₹67.37 | ₹2,021.10 |
| 100+ | ₹58.66 | ₹5,866.00 |
| 500+ | ₹53.56 | ₹26,780.00 |
| 1,000+ | ₹50.79 | ₹50,790.00 |
1 × ₹93.72
₹93.72
excl. GST
₹110.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVD6416ANT4G-VB
₹93.72 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 55mΩ@10V;57mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V;3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.364 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- 100% tested for unclamped inductive switching (UIS)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVD6416ANLT4G-VB#C20755168VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹92.64 · 20 in stock | View |
 | RU1HE16L-VB#C22389122VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹92.64 · 20 in stock | View |
 | FDD850N10L-VB#C22389193VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹92.64 · 20 in stock | View |
 | RSD175N10-VB#C22389380VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹89.06 · 15 in stock | View |
 | AP30T10GH-HF-VB#C22389707VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 17 | ₹89.06 · 17 in stock | View |
