onsemiDatasheet (PDF)

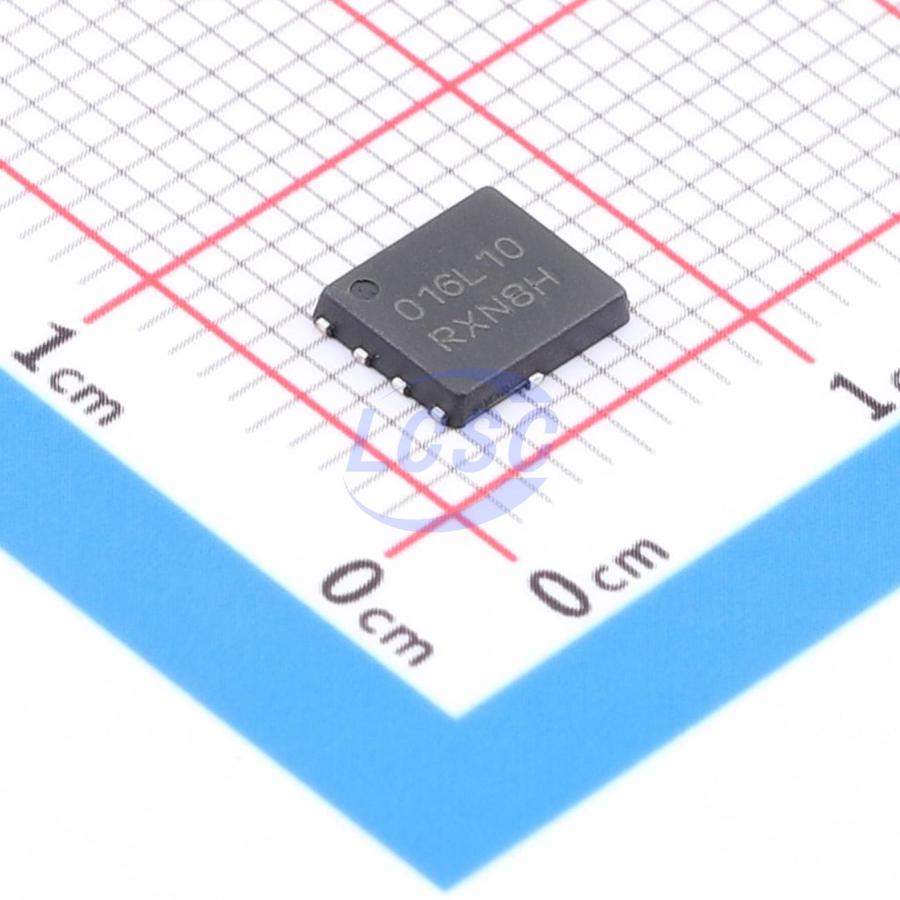

NVMFS016N10MCLT1G
32W 100V 46A 20mΩ@4.5V 1 N-channel N-Channel DFN-5(5x6)(SO-8FL) Single FETs, MOSFETs RoHS
DFN-5(5x6)(SO-8FL)ROHS3 CompliantActive
MOSFET N-CH 100V 46A DFN-5(5x6)(SO-8FL)
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS016N10MCLT1G
- Store part #
- C3288267
- Package / case
- DFN-5(5x6)(SO-8FL)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3 in stock
#C3288267
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.72 | ₹174.72 |
| 10+ | ₹170.59 | ₹1,705.90 |
| 30+ | ₹167.54 | ₹5,026.20 |
| 100+ | ₹164.71 | ₹16,471.00 |
1 × ₹174.72
₹174.72
excl. GST
₹206.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS016N10MCLT1G
₹174.72 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 460pF
- Ciss-Input Capacitance
- 1.25nF
- Pd - Power Dissipation
- 32W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 46A
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 20mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.251 g
Overview
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low RDS(on) for minimized conduction losses
- Low QG and capacitance for minimized gate drive losses
- AEC-Q101 qualified, PPAP documentation available
- NVMFWS016N10MCL - solderable flank variant
- Lead-free, halogen-free/BFR-free, beryllium-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON6298#C2925782AOS · DFN-8(5x6) | AOS | DFN-8(5x6) | 3,033 | ₹107.11 · 3,033 in stock | View |
 | VBGQA1202N#C55247156VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 52 | ₹209.21 · 52 in stock | View |
 | HYG110N11LS1C2#C2980991HUAYI · PDFN-8(4.9x5.8) | HUAYI | PDFN-8(4.9x5.8) | 4,860 | ₹75.24 · 4,860 in stock | View |
 | BSC110N15NS5-VB#C22395968VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹313.55 · 10 in stock | View |
 | NTMFS005N10MCLT1G-VB#C47993928VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 14 | ₹206.37 · 14 in stock | View |
