onsemiDatasheet (PDF)

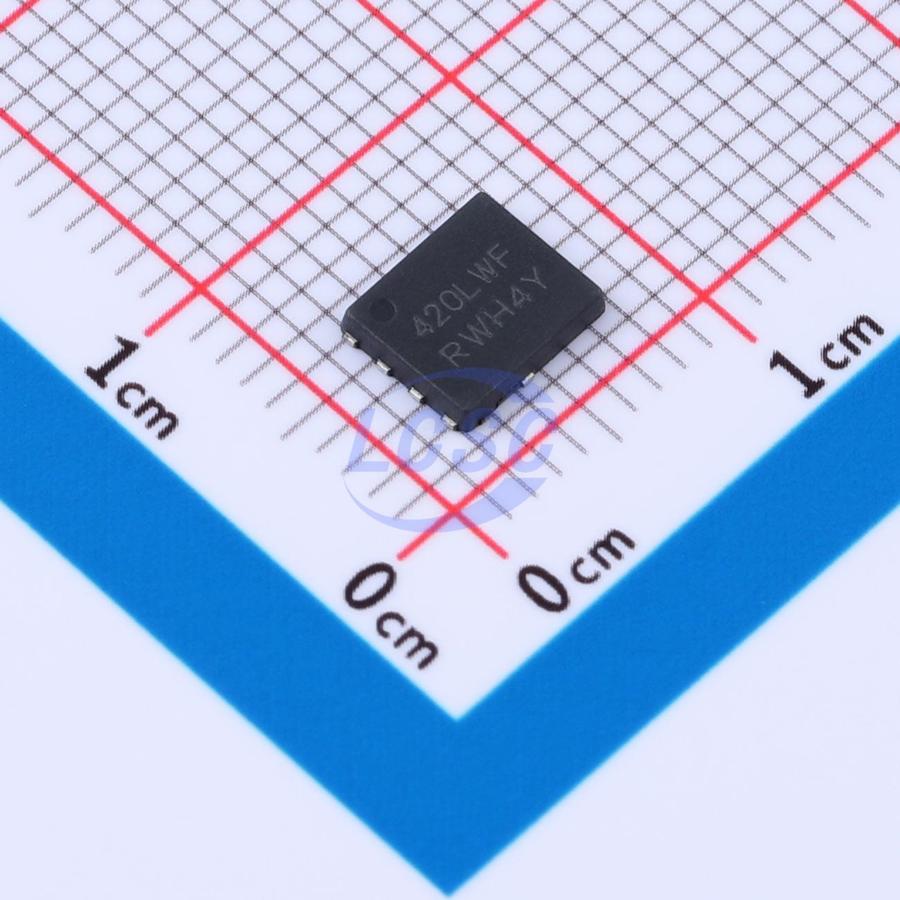

NVMFS5C420NLWFT1G
73W 40V 277A 1.4mΩ@4.5V 1 N-channel N-Channel DFN-5(5.1x6.1) Single FETs, MOSFETs RoHS
DFN-5(5.1x6.1)ROHS3 CompliantActive
N-Channel MOSFET, Current:277A, Voltage:40V
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C420NLWFT1G
- Store part #
- C2902073
- Package / case
- DFN-5(5.1x6.1)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C2902073
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹466.21 | ₹466.21 |
| 10+ | ₹459.33 | ₹4,593.30 |
| 30+ | ₹454.60 | ₹13,638.00 |
| 100+ | ₹450.08 | ₹45,008.00 |
1 × ₹466.21
₹466.21
excl. GST
₹550.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C420NLWFT1G
₹466.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.13nF
- Ciss-Input Capacitance
- 7.02nF
- Pd - Power Dissipation
- 73W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 277A
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 1.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
Applications
- OR-gate diode applications - motor drive - power load switching - battery management and protection
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS5C420NLWF − Wettable Flank Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS5C404NT1G#C604433onsemi · DFN5(5x6) | onsemi | DFN5(5x6) | 5 | ₹1,507.53 · 5 in stock | View |
 | NTMFS5C404NLT1G#C604432onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 1,443 | ₹346.26 · 1,443 in stock | View |
 | NVMFS5C604NLWFT1G#C900443onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 10 | ₹868.60 · 10 in stock | View |
 | NVMFS5C604NLT1G#C513058onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 9 | ₹1,941.32 · 9 in stock | View |
| NVMFS5C404NWFET1G#C3277825onsemi · DFNW-5(4.9x5.9) | onsemi | DFNW-5(4.9x5.9) | 5 | ₹1,633.75 · 5 in stock | View | |
