onsemiDatasheet (PDF)

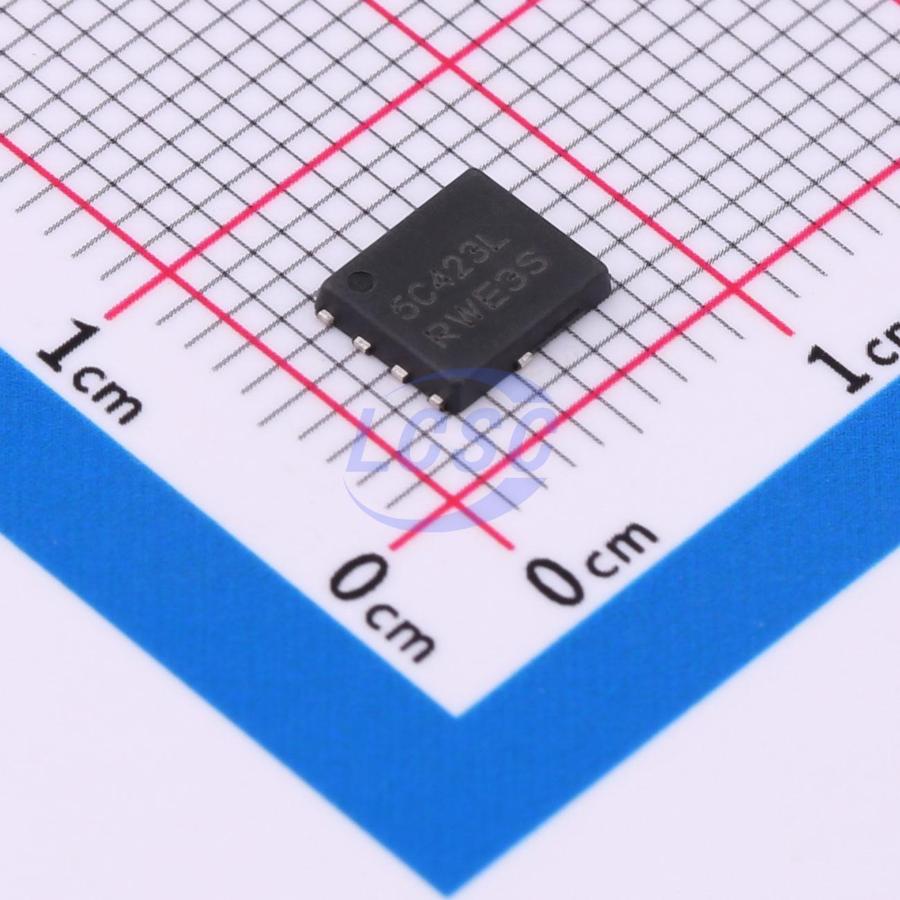

NVMFS5C423NLAFT1G
N-Channel 40V 150A 83W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 40V 150A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C423NLAFT1G
- Store part #
- C604593
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C604593
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹351.01 | ₹351.01 |
| 10+ | ₹345.41 | ₹3,454.10 |
| 30+ | ₹341.55 | ₹10,246.50 |
| 100+ | ₹337.89 | ₹33,789.00 |
1 × ₹351.01
₹351.01
excl. GST
₹414.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C423NLAFT1G
₹351.01 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.3nF
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 150A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 23nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.163 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS5C423NLWF - Wettable Flank Option for Enhanced Optical Inspection
- AEC - Q101 Qualified and PPAP Capable
- These Devices are Pb - Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HYG011N04LS1C2#C2911692HUAYI · DFN5x6-8 | HUAYI | DFN5x6-8 | 5,228 | ₹102.90 · 5,228 in stock | View |
 | MDDG04R1P9G#C54525234MDD(Microdiode Semiconductor) · PDFN-8L(5x6) | MDD(Microdiode Semiconductor) | PDFN-8L(5x6) | 2,405 | ₹45.80 · 2,405 in stock | View |
 | HYG009N04LS1C2#C2890387HUAYI · PDFN5x6-8L | HUAYI | PDFN5x6-8L | 37,423 | ₹110.42 · 37,423 in stock | View |
 | NVMFS5C628NLAFT1G#C604608onsemi · SO-8FL | onsemi | SO-8FL | 4 | ₹1,021.82 · 4 in stock | View |
| CMSA024N06L#C54443164Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 244 | ₹75.44 · 244 in stock | View | |
