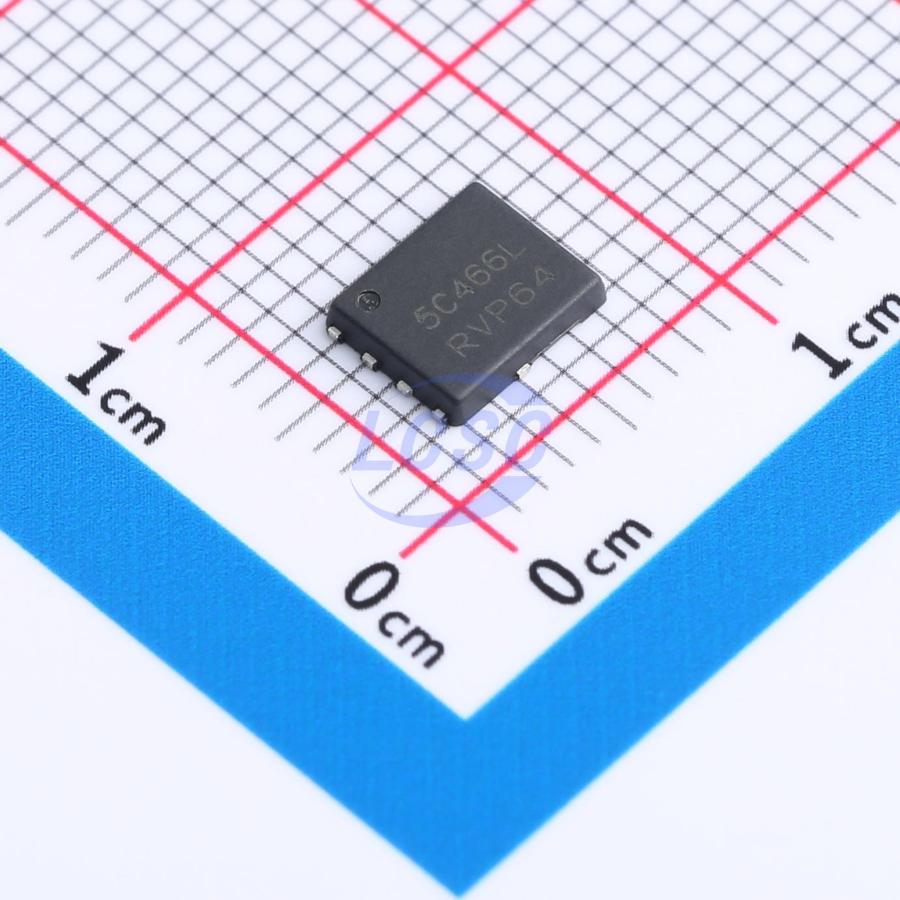

NVMFS5C466NLT1G
40V 52A 37W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET 40V 52A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C466NLT1G
- Store part #
- C604603
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
104 in stock
#C604603
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.86 | ₹161.86 |
| 10+ | ₹159.49 | ₹1,594.90 |
| 30+ | ₹157.98 | ₹4,739.40 |
| 100+ | ₹156.27 | ₹15,627.00 |
1 × ₹161.86
₹161.86
excl. GST
₹190.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C466NLT1G
₹161.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 52A
- Ciss-Input Capacitance
- 860pF
- Pd - Power Dissipation
- 37W
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 7.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Key features
- Small Footprint <5x6 mm> for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS5C466NLWF − Wettable Flank Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BRCS080N04ZC#C22448996BLUE ROCKET · PDFN-8(5x6) | BLUE ROCKET | PDFN-8(5x6) | 3,235 | ₹20.32 · 3,235 in stock | View |
 | PGN04N060#C42457643HT(Shenzhen Jinyu Semicon) · PDFN5X6-8L | HT(Shenzhen Jinyu Semicon) | PDFN5X6-8L | 2,925 | ₹21.26 · 2,925 in stock | View |
 | DON60N04#C42420909DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 1,310 | ₹19.32 · 1,310 in stock | View |
 | KCY3406B#C52145849KIA Semicon Tech · DFN-8(5x6) | KIA Semicon Tech | DFN-8(5x6) | 125 | ₹34.04 · 125 in stock | View |
 | NP60S04D6-Sn-G#C2991150NATLINEAR · PDFN-8(5x6) | NATLINEAR | PDFN-8(5x6) | 745 | ₹30.38 · 745 in stock | View |
