onsemiDatasheet (PDF)

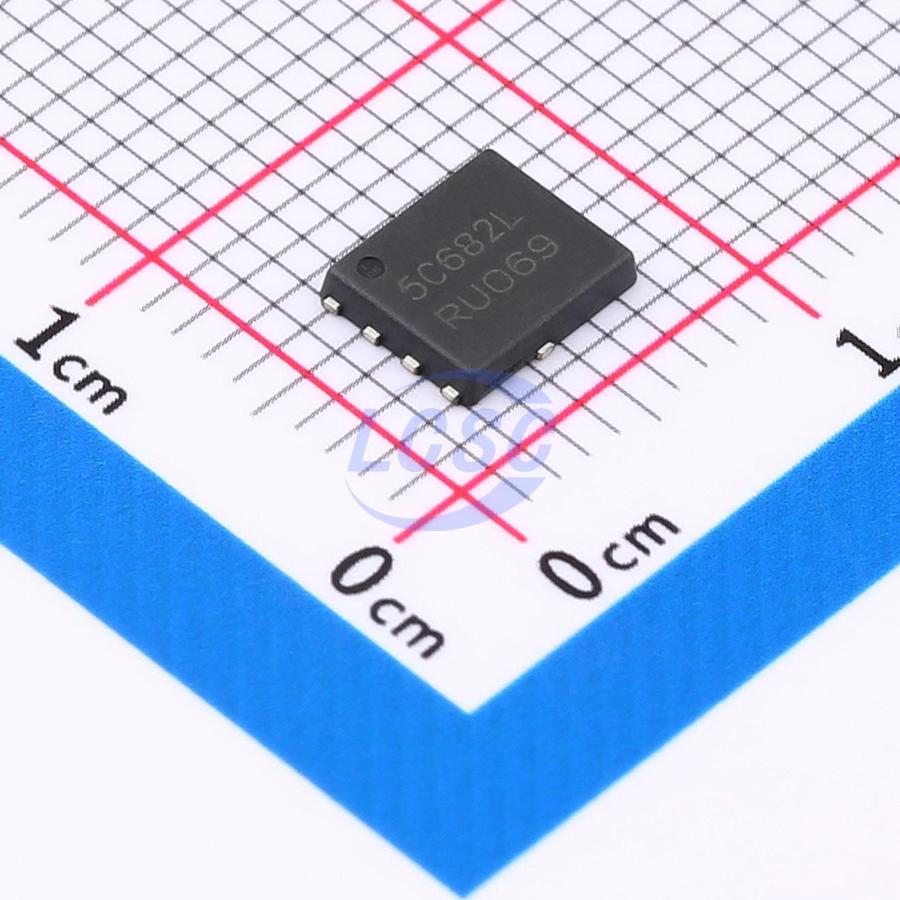

NVMFS5C682NLAFT1G
N-Channel 60V 25A Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 60V 25A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C682NLAFT1G
- Store part #
- C463407
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C463407
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.15 | ₹120.15 |
| 10+ | ₹99.30 | ₹993.00 |
| 30+ | ₹88.77 | ₹2,663.10 |
| 100+ | ₹78.45 | ₹7,845.00 |
| 500+ | ₹72.43 | ₹36,215.00 |
| 1,500+ | ₹69.22 | ₹1,03,830.00 |
1 × ₹120.15
₹120.15
excl. GST
₹141.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C682NLAFT1G
₹120.15 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 210pF
- Ciss-Input Capacitance
- 410pF
- Pd - Power Dissipation
- 28W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 25A
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 21mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
Key features
- Small Footprint <5x6 mm> for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS5C682NLWF - Wettable Flank Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C682NLWFAFT1G#C604619onsemi · SO-8FL | onsemi | SO-8FL | 91 | ₹299.45 · 91 in stock | View |
 | NE018T2G#C54300814DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 160 | ₹16.33 · 160 in stock | View |
 | NVMFS5C677NLT1G#C604617onsemi · SO-8FL | onsemi | SO-8FL | 75 | ₹223.97 · 75 in stock | View |
 | FDMS86200DC#C605044onsemi · PDFN-8(5.2x6.2) | onsemi | PDFN-8(5.2x6.2) | 9 | ₹476.73 · 9 in stock | View |
 | DMTH15H017SPSWQ-13#C19950019DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 10 | ₹804.73 · 10 in stock | View |
