onsemiDatasheet (PDF)

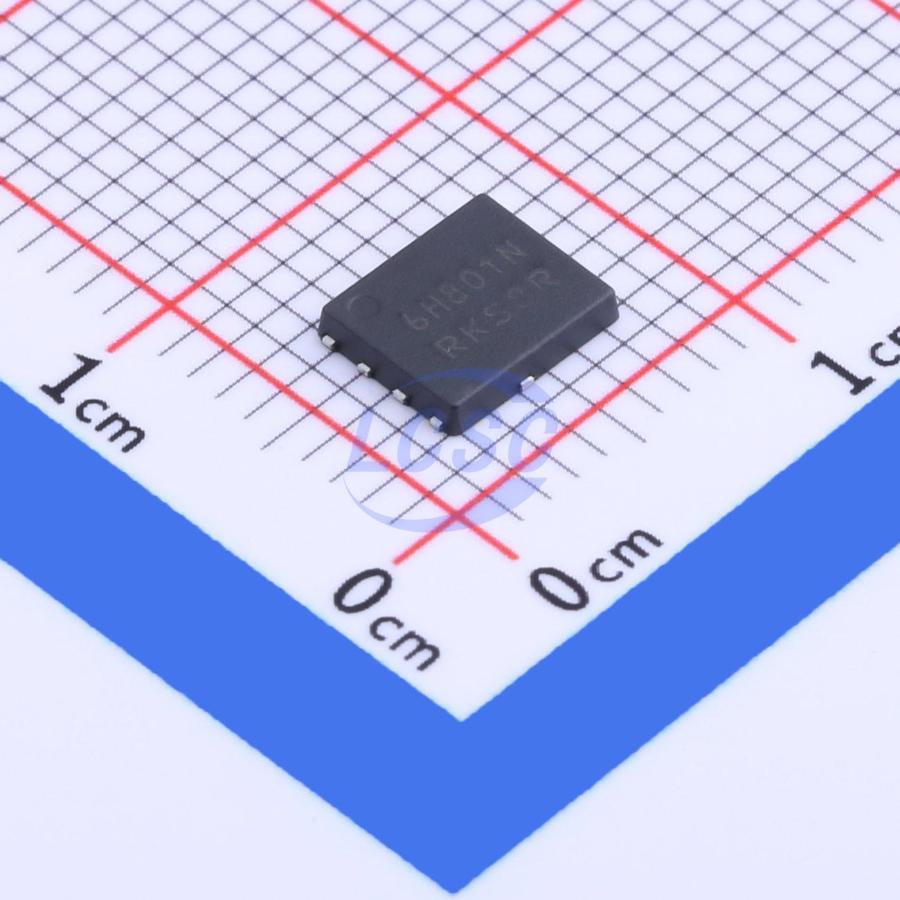

NVMFS6H801NT1G
166W 80V 157A 2.8mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS6H801NT1G
- Store part #
- C604623
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C604623
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹426.85 | ₹426.85 |
| 10+ | ₹363.14 | ₹3,631.40 |
| 30+ | ₹325.30 | ₹9,759.00 |
| 100+ | ₹287.02 | ₹28,702.00 |
| 500+ | ₹269.42 | ₹1,34,710.00 |
| 1,500+ | ₹261.37 | ₹3,92,055.00 |
1 × ₹426.85
₹426.85
excl. GST
₹503.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS6H801NT1G
₹426.85 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 586pF
- Ciss-Input Capacitance
- 4.12nF
- Pd - Power Dissipation
- 166W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 157A
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 64nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.153 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) minimizes conduction losses
- Low gate charge QG and capacitance minimizes switching losses
- NVMFS6H801NWF - solderable flank option for enhanced optical inspection
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS6H801NLT1G#C900465onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹506.64 · 20 in stock | View |
 | NVMFS6H800NWFT1G#C604622onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹964.37 · 20 in stock | View |
 | NVMFS6H800NLWFT1G#C900464onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 101 | ₹947.43 · 101 in stock | View |
 | NTMFS6H800NT1G#C604456onsemi · DFN5(5x6) | onsemi | DFN5(5x6) | 10 | ₹445.30 · 10 in stock | View |
 | NVMFS6H801NWFT1G#C604624onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | On request | ₹418.28 · 0 in stock | View |
