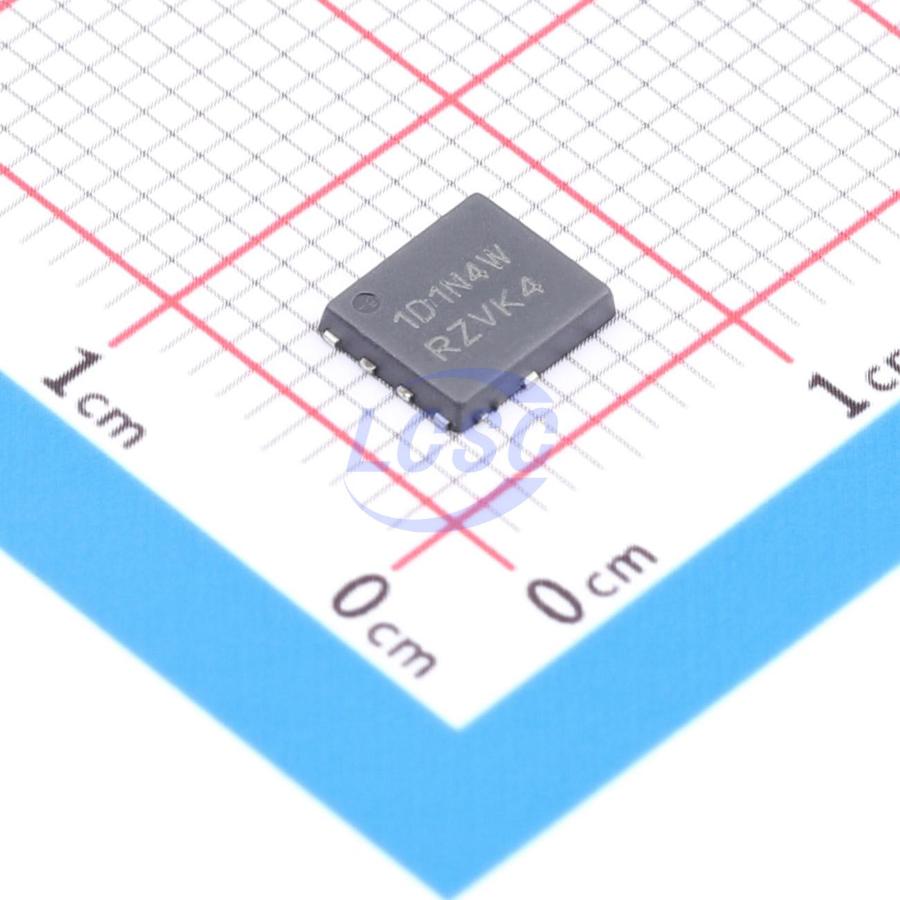

NVMFWS1D1N04XMT1G
104W 40V 233A 0.9mΩ@10V 1 N-channel N-Channel SO-8FL Single FETs, MOSFETs
SO-8FLRoHSActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFWS1D1N04XMT1G
- Store part #
- C48398209
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
178 in stock
#C48398209
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹268.42 | ₹268.42 |
| 10+ | ₹225.41 | ₹2,254.10 |
| 30+ | ₹198.40 | ₹5,952.00 |
| 100+ | ₹170.73 | ₹17,073.00 |
| 500+ | ₹158.42 | ₹79,210.00 |
| 1,500+ | ₹153.02 | ₹2,29,530.00 |
1 × ₹268.42
₹268.42
excl. GST
₹316.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFWS1D1N04XMT1G
₹268.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.015nF
- Ciss-Input Capacitance
- 3.138nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 233A
- Reverse Transfer Capacitance (Crss)
- 29.4pF
- RDS(on)
- 0.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49.3nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
Applications
- Motor drive
- Battery protection
- Synchronous rectification
Key features
- Low on-resistance (RDS(on)) for reduced conduction losses
- Low capacitance for reduced drive losses
- Compact footprint (5 x 6 mm)
- AECQ101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSA008N04#C53896392Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 4,972 | ₹112.55 · 4,972 in stock | View |
| AONS66609#C20266281AOS · DFN-8(5x6) | AOS | DFN-8(5x6) | 10 | ₹553.75 · 10 in stock | View | |
 | BSC007N04LS6-VB#C52189536VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 10 | ₹208.99 · 10 in stock | View |
 | NVMFS5C404NLWFT1G-VB#C52189665VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 5 | ₹208.99 · 5 in stock | View |
 | NVMFS5C404NT1G-VB#C52189674VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 5 | ₹208.99 · 5 in stock | View |
