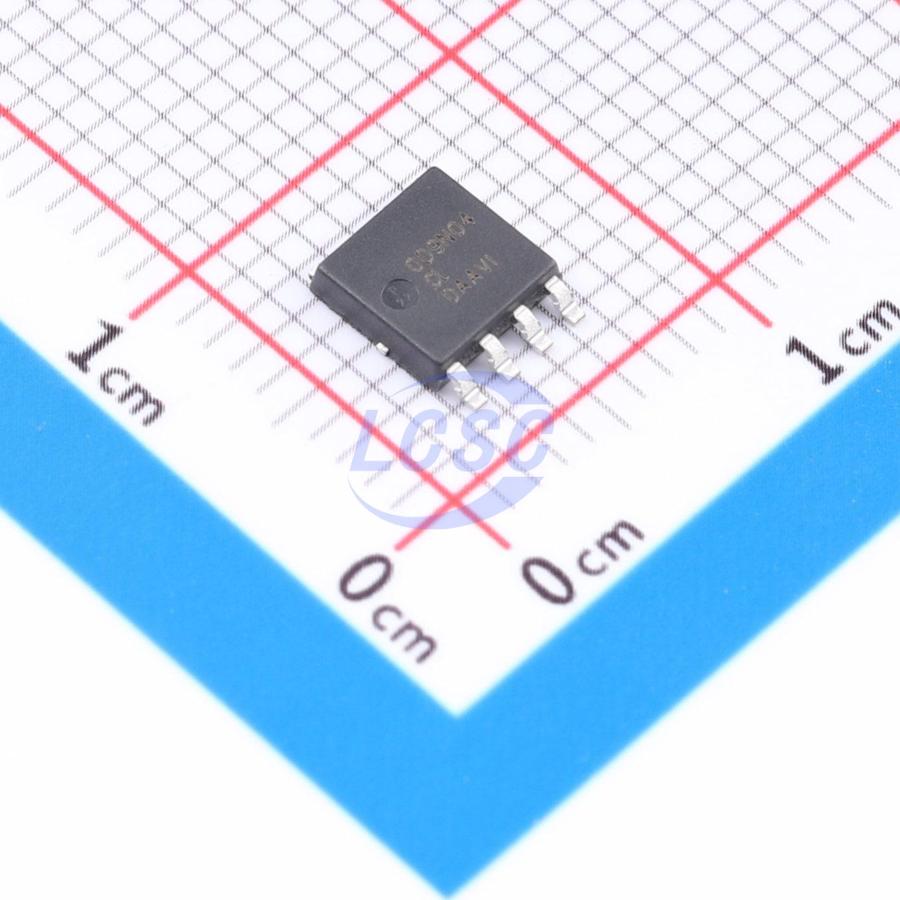

NVMJS0D9N04CLTWG
40V 0.82mΩ@10V 1 N-channel N-Channel LFPAK-8 Single FETs, MOSFETs RoHS
LFPAK-8ROHS3 CompliantActive
MOSFET N-CH 40V 50A LFPAK-8
- Manufacturer
- onsemi
- Manufacturer part #
- NVMJS0D9N04CLTWG
- Store part #
- C894171
- Package / case
- LFPAK-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C894171
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.60 | ₹223.60 |
| 10+ | ₹218.61 | ₹2,186.10 |
| 30+ | ₹215.13 | ₹6,453.90 |
| 100+ | ₹211.65 | ₹21,165.00 |
1 × ₹223.60
₹223.60
excl. GST
₹263.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMJS0D9N04CLTWG
₹223.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.328nF
- Ciss-Input Capacitance
- 8.862nF
- Pd - Power Dissipation
- 3.8W;167W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 50A;330A
- Reverse Transfer Capacitance (Crss)
- 77pF
- RDS(on)
- 0.82mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 143nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.694 g
Overview
NVATS4A102PZ is a power MOSFET designed for compact size and high efficiency, delivering superior thermal dissipation performance. This MOSFET is AEC-Q101 compliant and PPAP capable, suitable for automotive applications.
Applications
- Reverse battery protection - Load switch - Automotive headlights - Automotive body controller
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) minimizing conduction losses
- Low gate charge QG and capacitance minimizing drive losses
- LFPAK8 package, industry-standard compliant
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, halogen/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NTMJS0D8N04CLTWG#C894043onsemi · LFPAK-8 | onsemi | LFPAK-8 | 15 | ₹1,205.16 · 15 in stock | View | |
| NTMJS0D9N04CLTWG#C894044onsemi · LFPAK-8 | onsemi | LFPAK-8 | On request | ₹357.33 · 0 in stock | View | |
| NVMJS0D8N04CLTWG#C894170onsemi · LFPAK-8 | onsemi | LFPAK-8 | On request | ₹481.66 · 0 in stock | View | |
| NVMJS0D9N04CTWG#C894172onsemi · LFPAK-8 | onsemi | LFPAK-8 | On request | ₹454.66 · 0 in stock | View | |
| NTMJS0D9N04CTWG#C894045onsemi · LFPAK-8 | onsemi | LFPAK-8 | On request | ₹442.78 · 0 in stock | View | |
