onsemiDatasheet (PDF)

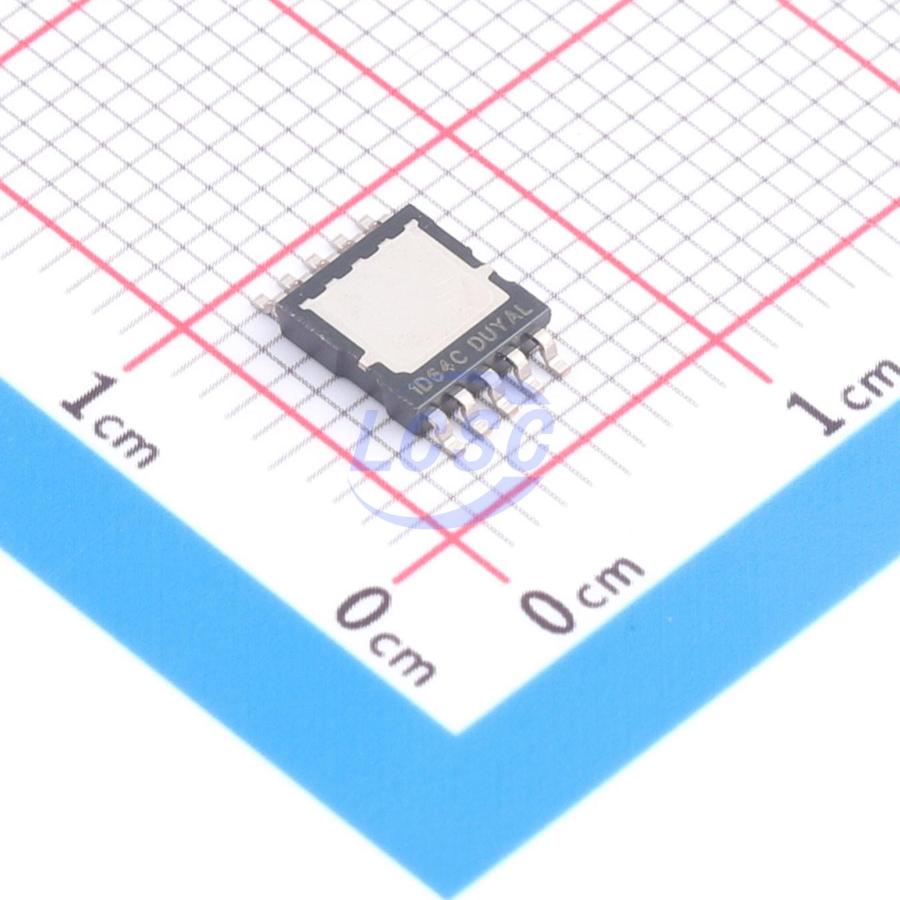

NVMJST1D6N04CTXG
300W 40V 314A 1.65mΩ@10V 1 N-channel N-Channel LFPAK-10(7.5x5) Single FETs, MOSFETs
LFPAK-10(7.5x5)RoHSActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMJST1D6N04CTXG
- Store part #
- C5208906
- Package / case
- LFPAK-10(7.5x5)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5208906
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹358.00 | ₹358.00 |
| 10+ | ₹349.14 | ₹3,491.40 |
| 30+ | ₹343.31 | ₹10,299.30 |
| 100+ | ₹337.25 | ₹33,725.00 |
1 × ₹358.00
₹358.00
excl. GST
₹422.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMJST1D6N04CTXG
₹358.00 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.6nF
- Ciss-Input Capacitance
- 3.3nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 314A
- Reverse Transfer Capacitance (Crss)
- 45pF
- RDS(on)
- 1.65mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3 g
Overview
The SUPERFET V MOSFET FRFET series features optimized body diode performance characteristics. This helps reduce component count in applications while improving performance and reliability, particularly when using soft-switching topologies.
Applications
- Electric vehicle on-board charger
- Electric vehicle main battery DC/DC converter
Key features
- Compact 5x7 mm footprint for space-constrained designs
- Low on-resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized driving losses
- TCPAK57 5x7 top-side cooling package
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NVMJST0D9N04CTXG#C5208903onsemi · LFPAK-10(7.5x5) | onsemi | LFPAK-10(7.5x5) | On request | ₹688.24 · 0 in stock | View | |
| NVMJST1D2N04CTXG#C5208905onsemi · LFPAK-10(7.5x5) | onsemi | LFPAK-10(7.5x5) | On request | ₹588.93 · 0 in stock | View | |
| NVMJST1D4N06CLTXG#C5208904onsemi · LFPAK-10(7.5x5) | onsemi | LFPAK-10(7.5x5) | On request | ₹529.90 · 0 in stock | View | |
