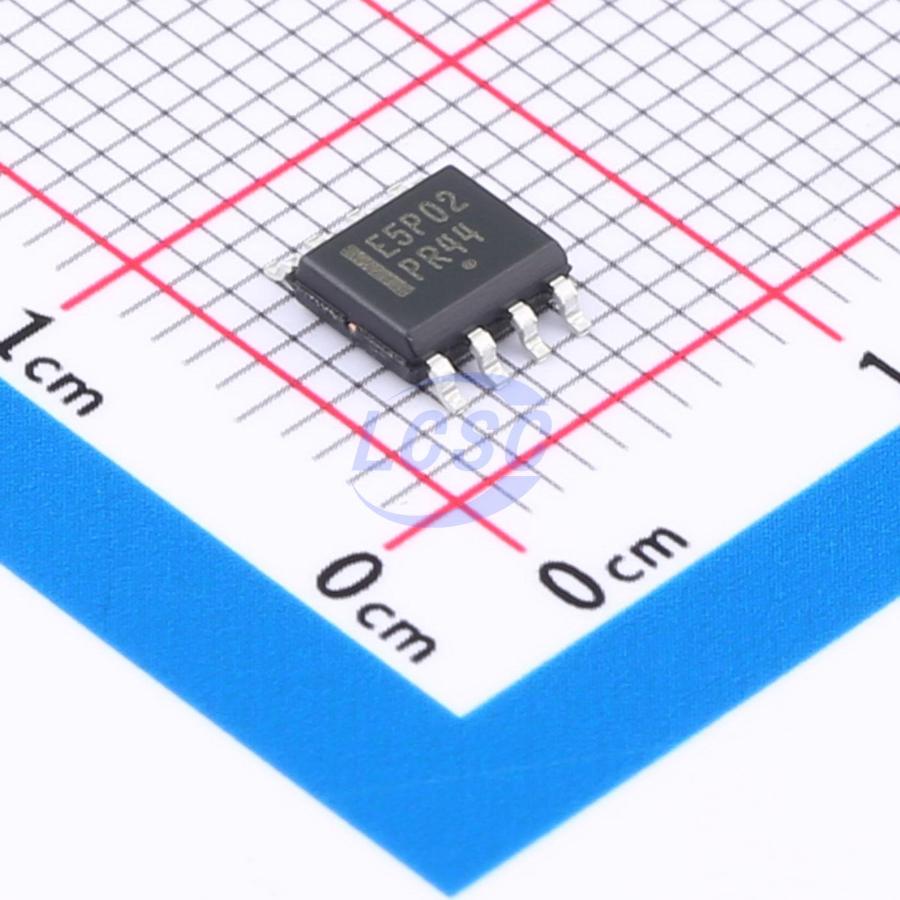

NVMS5P02R2G
20V 5.4A 2.5W Surface Mount SOIC-8
SOIC-8ROHS3 CompliantActive
MOSFET 20V 5.4A SOIC-8
- Manufacturer
- onsemi
- Manufacturer part #
- NVMS5P02R2G
- Store part #
- C887750
- Package / case
- SOIC-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C887750
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.52 | ₹143.52 |
| 10+ | ₹119.82 | ₹1,198.20 |
| 30+ | ₹106.99 | ₹3,209.70 |
| 100+ | ₹92.42 | ₹9,242.00 |
| 500+ | ₹85.90 | ₹42,950.00 |
| 1,000+ | ₹83.07 | ₹83,070.00 |
1 × ₹143.52
₹143.52
excl. GST
₹169.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVMS5P02R2G
₹143.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 510pF
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 2.5W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5.4A
- Reverse Transfer Capacitance (Crss)
- 380pF
- RDS(on)
- 26mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 20nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 650mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
Applications
- Power Management in Portable and Battery−Powered Products, i.e.: Computers, Printers, PCMCIA Cards, Cellular & Cordless Telephones
Key features
- High Density Power MOSFET with Ultra Low RDS(on) Providing Higher Efficiency
- Miniature SOIC−8 Surface Mount Package − Saves Board Space
- Diode Exhibits High Speed with Soft Recovery
- IDSS Specified at Elevated Temperature
- Drain−to−Source Avalanche Energy Specified
- These Devices are Pb−Free and are RoHS Compliant
- NVMS Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7404TRPBF#C2997Infineon · SO-8 | Infineon | SO-8 | 615 | ₹268.24 · 615 in stock | View |
 | IRF7404TR(UMW)#C5447690UMW · SOP-8 | UMW | SOP-8 | 4,095 | ₹23.35 · 4,095 in stock | View |
 | RU30L15H-VB#C693100VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹62.97 · 15 in stock | View |
 | NCE40P07S#C414143NCE · SOP-8 | NCE | SOP-8 | 3,830 | ₹43.20 · 3,830 in stock | View |
 | VBZA4435#C416342VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 30 | ₹62.54 · 30 in stock | View |
