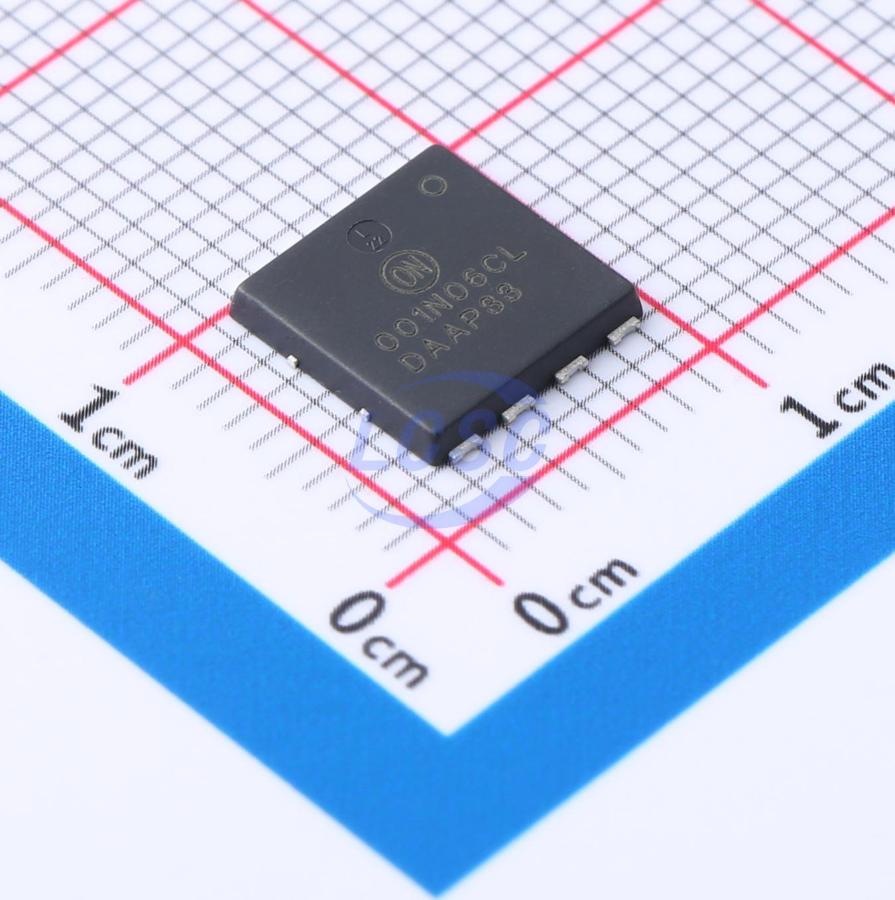

NVMTS001N06CLTXG
60V 398.2A 244W Surface Mount DFNW-8
DFNW-8ROHS3 CompliantActive
MOSFET 60V 398.2A DFNW-8
- Manufacturer
- onsemi
- Manufacturer part #
- NVMTS001N06CLTXG
- Store part #
- C894181
- Package / case
- DFNW-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C894181
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹916.75 | ₹916.75 |
| 10+ | ₹878.26 | ₹8,782.60 |
| 30+ | ₹854.78 | ₹25,643.40 |
| 100+ | ₹835.21 | ₹83,521.00 |
1 × ₹916.75
₹916.75
excl. GST
₹1,081.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMTS001N06CLTXG
₹916.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 6.225nF
- Ciss-Input Capacitance
- 12.3nF
- Pd - Power Dissipation
- 244W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 398.2A
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 0.81mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 165nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
Key features
- Small Footprint (8x8 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- Power 88 Package, Industry Standard
- AEC−Q101 Qualified and PPAP Capable
- Wettable Flank Plated for Enhanced Optical Inspection
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMTS0D7N06CTXG#C894185onsemi · DFNW-8 | onsemi | DFNW-8 | On request | ₹2,142.72 · 0 in stock | View |
