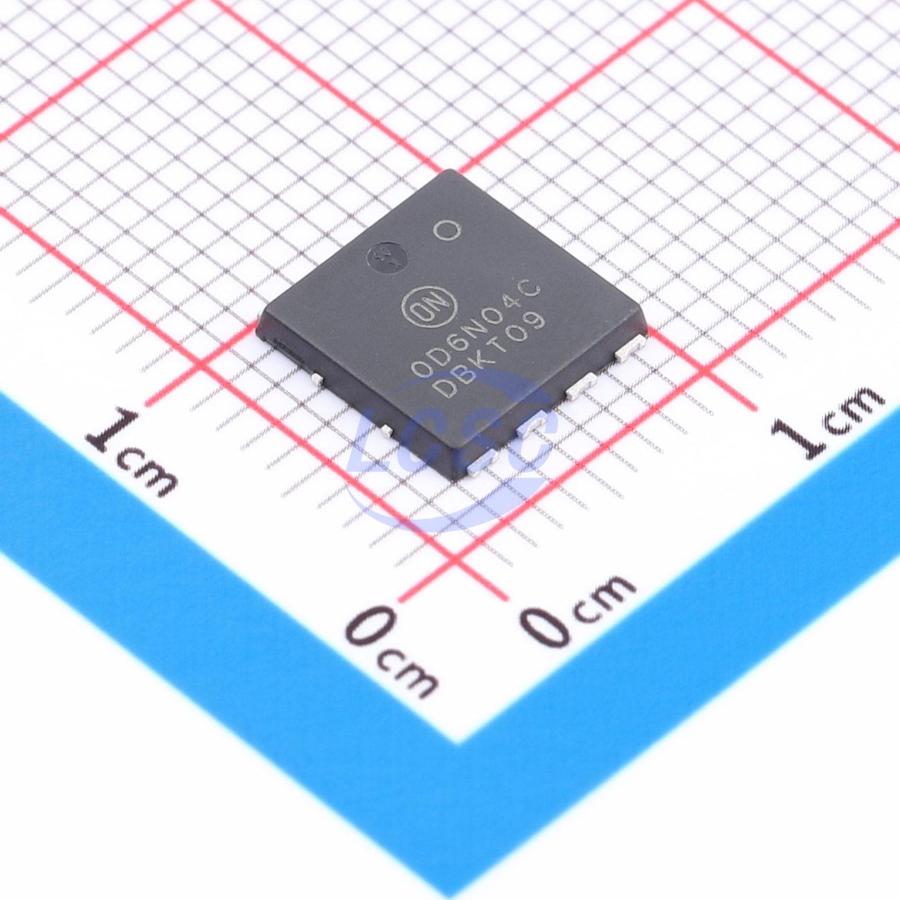

NVMTS0D6N04CTXG
245W 40V 533A 0.39mΩ@10V 1 N-channel N-Channel DFNW-8(8.4x8.3) Single FETs, MOSFETs RoHS
DFNW-8(8.4x8.3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMTS0D6N04CTXG
- Store part #
- C604629
- Package / case
- DFNW-8(8.4x8.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C604629
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,766.04 | ₹2,766.04 |
| 10+ | ₹2,684.14 | ₹26,841.40 |
| 30+ | ₹2,541.85 | ₹76,255.50 |
| 100+ | ₹2,418.06 | ₹2,41,806.00 |
1 × ₹2,766.04
₹2,766.04
excl. GST
₹3,263.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMTS0D6N04CTXG
₹2,766.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 7.03nF
- Ciss-Input Capacitance
- 11.8nF
- Pd - Power Dissipation
- 245W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 533A
- Reverse Transfer Capacitance (Crss)
- 199pF
- RDS(on)
- 0.39mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 187nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.437 g
Overview
Key features
- Compact package (8x8 mm) for space-constrained designs
- Low on-resistance RDS(on) to minimize conduction losses
- Low gate charge QG and capacitance to minimize drive losses
- Solderable side-wing plating for optical inspection
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMTS0D6N04CTXG#C604462onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 10 | ₹1,029.56 · 10 in stock | View |
 | NTMTS0D4N04CTXG#C894058onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 16 | ₹1,215.29 · 16 in stock | View |
| NVMTS0D4N04CTXG#C894183onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 10 | ₹3,391.93 · 10 in stock | View | |
 | NVMTS0D4N04CLTXG#C604628onsemi · PowerTDFN-8(7.9x8) | onsemi | PowerTDFN-8(7.9x8) | On request | ₹1,017.96 · 0 in stock | View |
| NTMTS0D6N04CLTXG#C604461onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | On request | ₹1,373.17 · 0 in stock | View | |
