onsemiDatasheet (PDF)

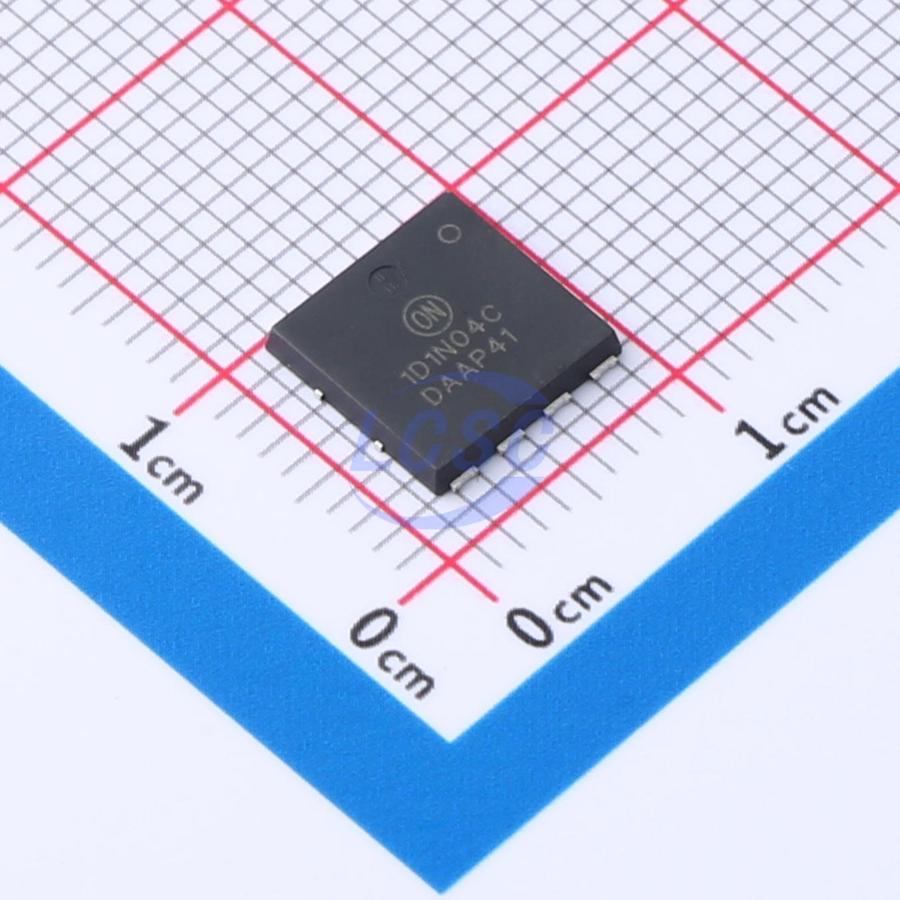

NVMTS1D1N04CTXG
N-Channel 40V 277A 76.5W Surface Mount DFNW-8(8.3x8.4)
DFNW-8(8.3x8.4)ROHS3 CompliantActive
MOSFET N-CH 40V 277A DFNW-8(8.3x8.4)
- Manufacturer
- onsemi
- Manufacturer part #
- NVMTS1D1N04CTXG
- Store part #
- C3288329
- Package / case
- DFNW-8(8.3x8.4)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C3288329
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹811.77 | ₹811.77 |
| 10+ | ₹777.80 | ₹7,778.00 |
| 30+ | ₹756.90 | ₹22,707.00 |
| 100+ | ₹739.49 | ₹73,949.00 |
1 × ₹811.77
₹811.77
excl. GST
₹957.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMTS1D1N04CTXG
₹811.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.145nF
- Ciss-Input Capacitance
- 5.41nF
- Pd - Power Dissipation
- 76.5W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 277A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 1.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 86nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
Applications
- High-frequency DC-DC isolated converters with synchronous rectification for telecom and industrial applications
- High-frequency buck converters for computer processor power supply
Key features
- Small Footprint (8x8 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- New Power 88 Package
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMTSC1D3N08M7TXG#C894188onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 15 | ₹939.67 · 15 in stock | View |
 | NTMTS0D4N04CTXG#C894058onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 16 | ₹1,215.29 · 16 in stock | View |
| NVMTS0D4N04CTXG#C894183onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 10 | ₹3,391.93 · 10 in stock | View | |
 | NVMTS1D2N08H#C894186onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 7 | ₹744.68 · 7 in stock | View |
 | NVMTS001N06CTXG#C894182onsemi · DFNW-8(8.4x8.3) | onsemi | DFNW-8(8.4x8.3) | 10 | ₹1,159.38 · 10 in stock | View |
