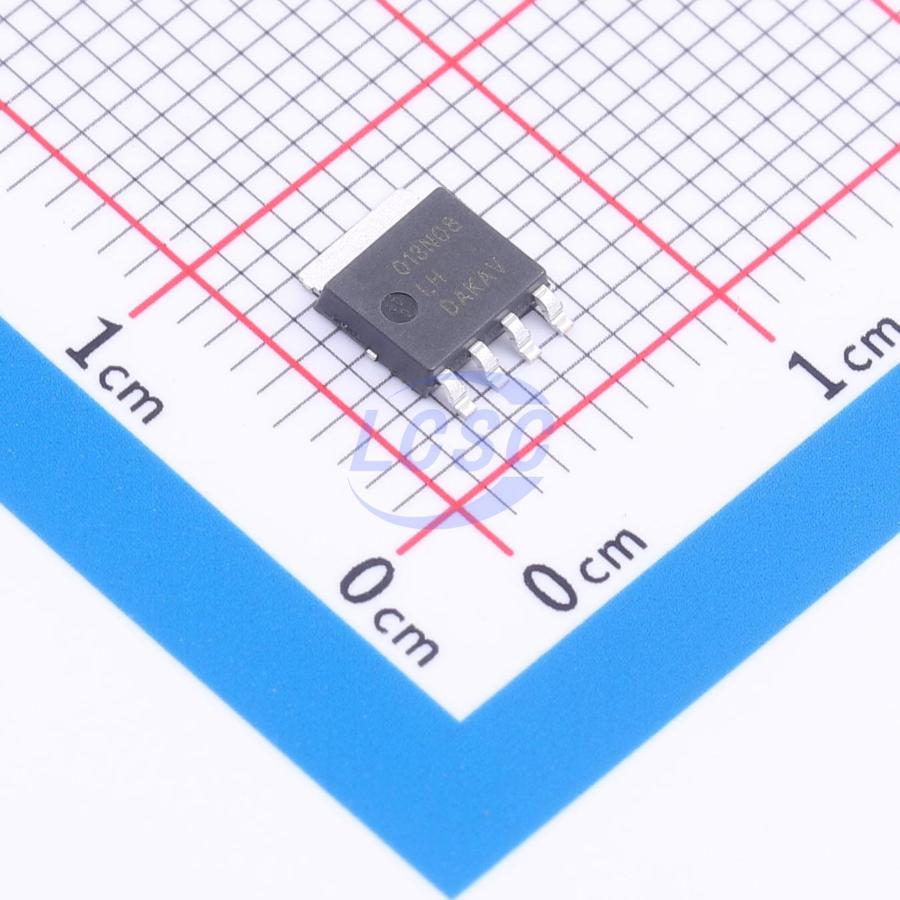

NVMYS013N08LHTWG
27W 80V 42A 17mΩ@4.5V 1 N-channel N-Channel LFPAK-4(5x6) Single FETs, MOSFETs RoHS
LFPAK-4(5x6)ROHS3 CompliantActive
N-channel, Current:42A, Voltage:80V
- Manufacturer
- onsemi
- Manufacturer part #
- NVMYS013N08LHTWG
- Store part #
- C3278345
- Package / case
- LFPAK-4(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3278345
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹196.27 | ₹196.27 |
| 10+ | ₹191.91 | ₹1,919.10 |
| 30+ | ₹188.87 | ₹5,666.10 |
| 100+ | ₹186.04 | ₹18,604.00 |
1 × ₹196.27
₹196.27
excl. GST
₹231.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMYS013N08LHTWG
₹196.27 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 116pF
- Ciss-Input Capacitance
- 906pF
- Pd - Power Dissipation
- 27W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 42A
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 17mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.146 g
Overview
The TSM15N50 N-channel enhancement-mode power MOSFET is manufactured using planar stripe DMOS technology. This advanced technology is specifically designed to minimize on-resistance, deliver superior switching performance, and withstand high-energy pulses in avalanche and commutation modes. These devices are ideally suited for high-efficiency switch-mode power supplies and half-bridge-based electronic lamp ballasts.
Key features
- Compact size (5x6 mm) for space-constrained designs
- Low on-resistance (RDS(on)) minimizing conduction losses
- Low gate charge (QG) and capacitance minimizing switching losses
- Industry-standard LFPAK4 package
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMYS003N08LHTWG#C3278347onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | 4 | ₹654.92 · 4 in stock | View |
| NVMYS008N08LHTWG#C3288611onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | On request | ₹167.12 · 0 in stock | View | |
