onsemiDatasheet (PDF)

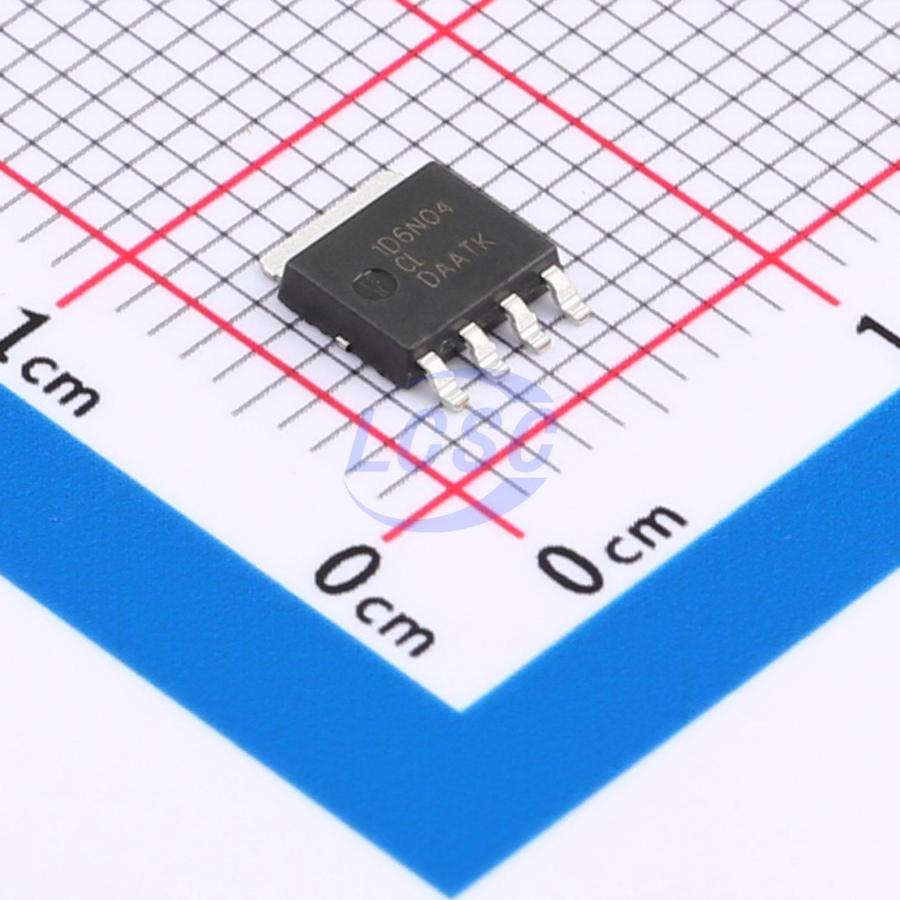

NVMYS1D6N04CLTWG
N-Channel 40V 185A 107.1W Surface Mount LFPAK-4(5x6)
LFPAK-4(5x6)ROHS3 CompliantActive
MOSFET N-CH 40V 185A LFPAK-4(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- NVMYS1D6N04CLTWG
- Store part #
- C3288610
- Package / case
- LFPAK-4(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C3288610
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹246.42 | ₹246.42 |
| 10+ | ₹210.52 | ₹2,105.20 |
| 30+ | ₹188.09 | ₹5,642.70 |
| 100+ | ₹165.23 | ₹16,523.00 |
| 500+ | ₹154.78 | ₹77,390.00 |
| 1,000+ | ₹150.43 | ₹1,50,430.00 |
1 × ₹246.42
₹246.42
excl. GST
₹290.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMYS1D6N04CLTWG
₹246.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.749nF
- Ciss-Input Capacitance
- 4.301nF
- Pd - Power Dissipation
- 107.1W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 185A
- Reverse Transfer Capacitance (Crss)
- 46pF
- RDS(on)
- 2.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 71nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Applications
- Power Supply
- AC/DC LED Lighting
Key features
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- AEC−Q101 Qualified and PPAP Capable
- LFPAK4 Package, Industry Standard
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMYS2D2N06CLTWG#C894197onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | 10 | ₹580.12 · 10 in stock | View |
| NVMYS1D7N04CTWG#C3288612onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | On request | ₹197.93 · 0 in stock | View | |
 | NVMYS1D3N04CTWG#C894195onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | On request | ₹929.18 · 0 in stock | View |
| NVMYS1D6N04CLT1G#C3278346onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | On request | ₹280.46 · 0 in stock | View | |
| NVMYS1D7N04CT1G#C3288614onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | On request | ₹280.46 · 0 in stock | View | |
