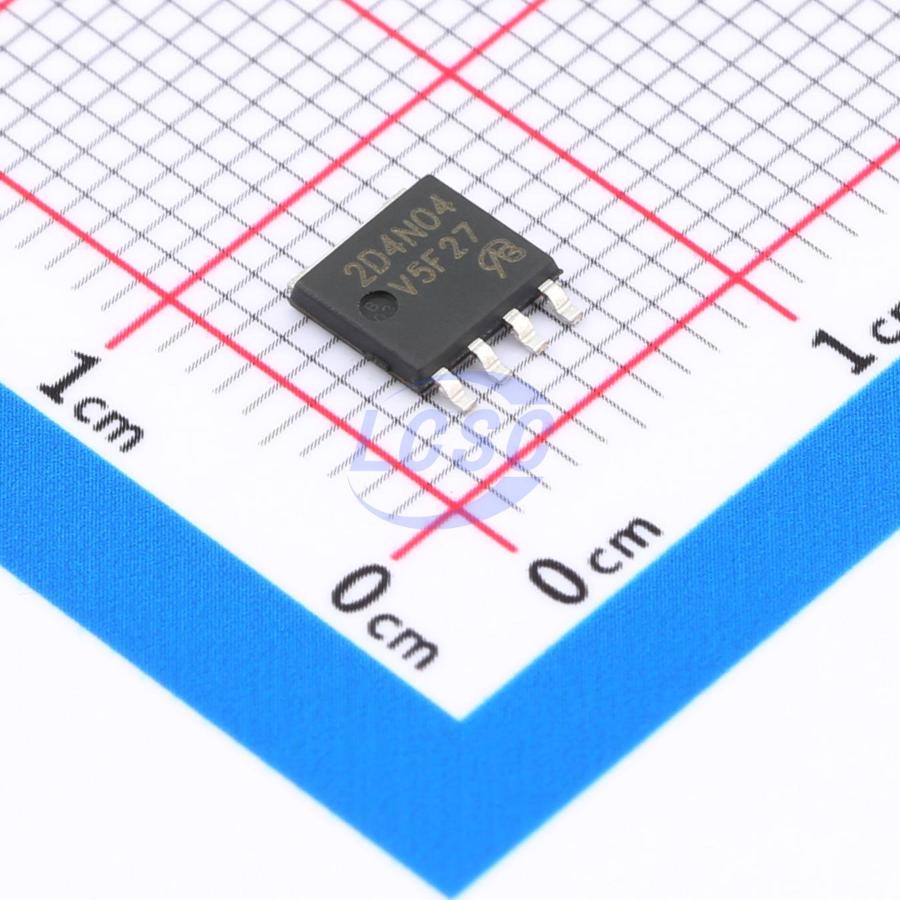

NVMYS2D4N04CTWG-VB
40V 150A 375W 1 N-channel N-Channel LFPAK56 Single FETs, MOSFETs
LFPAK56RoHSActive
MOSFET N-CH 40V 150A LFPAK56
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NVMYS2D4N04CTWG-VB
- Store part #
- C49253722
- Package / case
- LFPAK56
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C49253722
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹184.06 | ₹184.06 |
| 10+ | ₹152.12 | ₹1,521.20 |
| 30+ | ₹134.73 | ₹4,041.90 |
| 100+ | ₹114.96 | ₹11,496.00 |
| 500+ | ₹106.26 | ₹53,130.00 |
| 1,000+ | ₹102.14 | ₹1,02,140.00 |
1 × ₹184.06
₹184.06
excl. GST
₹217.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVMYS2D4N04CTWG-VB
₹184.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.65nF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 0.7mΩ@10V;0.8mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.517 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- SGT Power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBGED1401#C49253685VBsemi Elec · LFPAK56 | VBsemi Elec | LFPAK56 | 163 | ₹216.44 · 163 in stock | View |
 | BUK7J1R0-40H-VB#C49253686VBsemi Elec · LFPAK56 | VBsemi Elec | LFPAK56 | 5 | ₹195.05 · 5 in stock | View |
 | BUK7J1R4-40H-VB#C49253687VBsemi Elec · LFPAK56 | VBsemi Elec | LFPAK56 | 5 | ₹184.06 · 5 in stock | View |
 | BUK7Y1R0-40N-VB#C49253688VBsemi Elec · LFPAK56 | VBsemi Elec | LFPAK56 | 5 | ₹195.05 · 5 in stock | View |
 | BUK7Y1R4-40H-VB#C49253689VBsemi Elec · LFPAK56 | VBsemi Elec | LFPAK56 | 5 | ₹184.06 · 5 in stock | View |
