onsemiDatasheet (PDF)

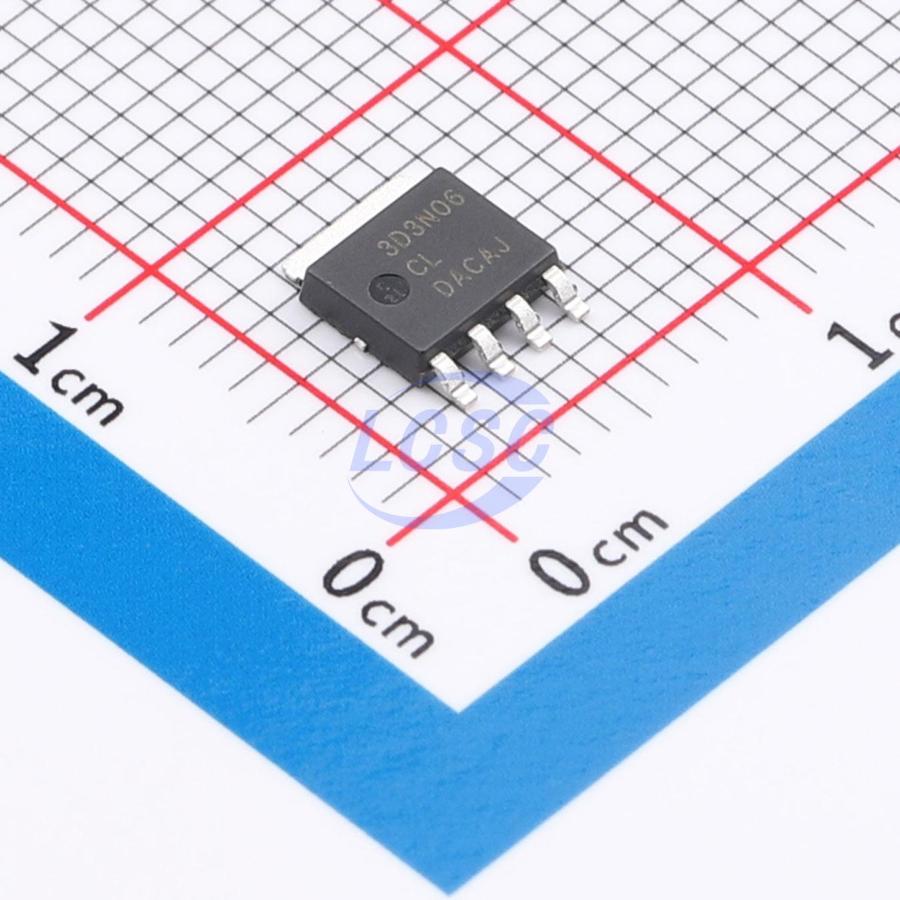

NVMYS3D3N06CLTWG
100W 60V 133A 2.6mΩ@10V 1 N-channel N-Channel LFPAK-4(5x6) Single FETs, MOSFETs RoHS
LFPAK-4(5x6)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMYS3D3N06CLTWG
- Store part #
- C894200
- Package / case
- LFPAK-4(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C894200
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹354.29 | ₹354.29 |
| 10+ | ₹297.04 | ₹2,970.40 |
| 30+ | ₹261.27 | ₹7,838.10 |
| 100+ | ₹224.84 | ₹22,484.00 |
| 500+ | ₹208.15 | ₹1,04,075.00 |
| 1,000+ | ₹200.99 | ₹2,00,990.00 |
1 × ₹354.29
₹354.29
excl. GST
₹418.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMYS3D3N06CLTWG
₹354.29 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.68nF
- Ciss-Input Capacitance
- 2.88nF
- Pd - Power Dissipation
- 100W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 133A
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 2.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40.7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
Key features
- Compact size (5x6 mm) for space-constrained designs
- Low on-state resistance RDS(on) minimizing conduction losses
- Low gate charge QG and capacitance minimizing drive losses
- LFPAK4 package, industry standard
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMYS2D2N06CLTWG#C894197onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | 10 | ₹580.12 · 10 in stock | View |
 | NVMYS003N08LHTWG#C3278347onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | 4 | ₹654.92 · 4 in stock | View |
| NTMYS3D3N06CLTWG#C894074onsemi · LFPAK-4(5x6) | onsemi | LFPAK-4(5x6) | On request | ₹374.42 · 0 in stock | View | |
