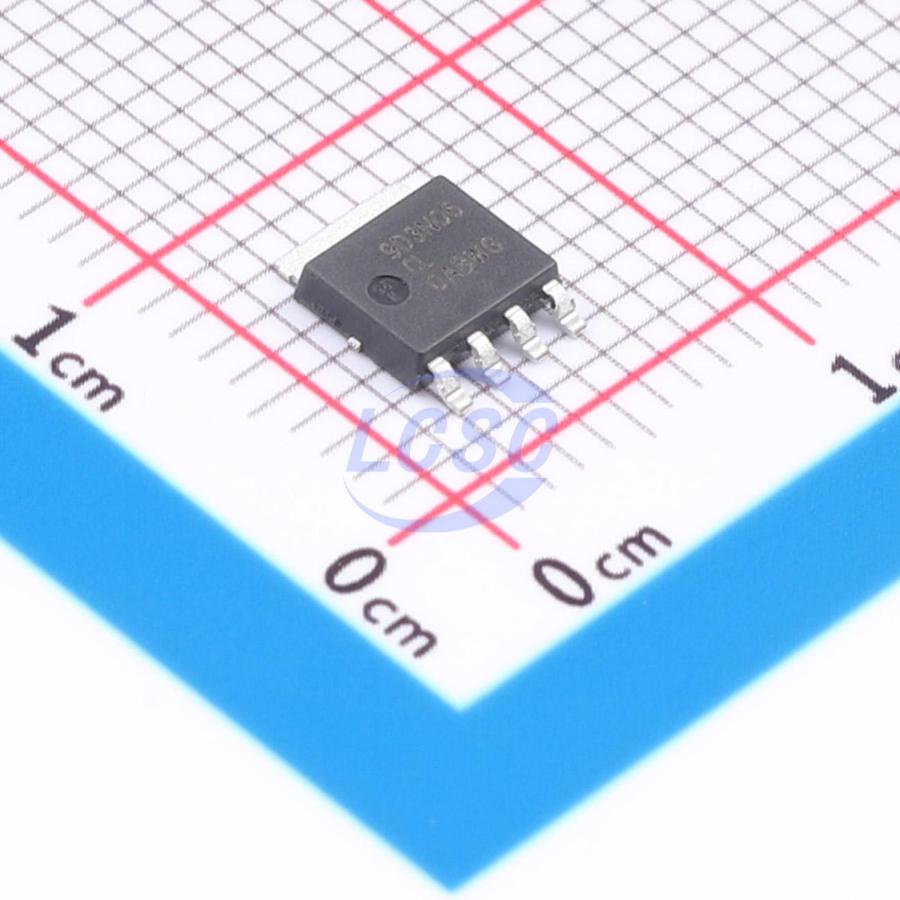

NVMYS9D3N06CLTWG
46W 60V 50A 9.2mΩ@10V 1 N-channel N-Channel LFPAK-4 Single FETs, MOSFETs RoHS
LFPAK-4ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMYS9D3N06CLTWG
- Store part #
- C5205716
- Package / case
- LFPAK-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C5205716
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹182.06 | ₹182.06 |
| 10+ | ₹178.83 | ₹1,788.30 |
| 30+ | ₹176.47 | ₹5,294.10 |
| 100+ | ₹174.32 | ₹17,432.00 |
1 × ₹182.06
₹182.06
excl. GST
₹214.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMYS9D3N06CLTWG
₹182.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 450pF
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 46W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 9.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) minimizes conduction losses
- Low gate charge QG and capacitance minimize driving losses
- Industry-standard LFPAK4 package
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
