onsemiDatasheet (PDF)

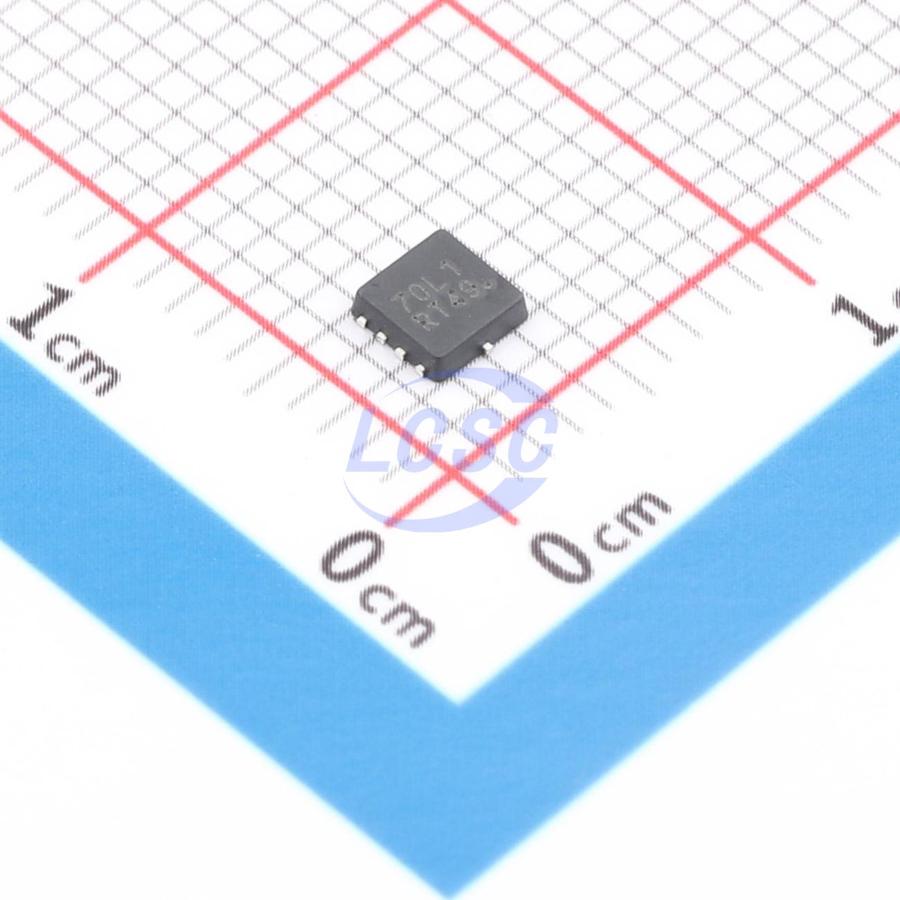

NVTFS070N10MCLTAG
25W 100V 13A 65mΩ 1 N-channel N-Channel WDFN-8 Single FETs, MOSFETs RoHS
WDFN-8ROHS3 CompliantActive
MOSFET N-CH 100V 13A WDFN-8
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS070N10MCLTAG
- Store part #
- C5208186
- Package / case
- WDFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C5208186
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹297.91 | ₹297.91 |
| 10+ | ₹260.08 | ₹2,600.80 |
| 30+ | ₹239.45 | ₹7,183.50 |
| 100+ | ₹216.02 | ₹21,602.00 |
| 500+ | ₹205.49 | ₹1,02,745.00 |
| 1,500+ | ₹200.75 | ₹3,01,125.00 |
1 × ₹297.91
₹297.91
excl. GST
₹351.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVTFS070N10MCLTAG
₹297.91 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 135pF
- Ciss-Input Capacitance
- 305pF
- Pd - Power Dissipation
- 25W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 13A
- Reverse Transfer Capacitance (Crss)
- 1.9pF
- RDS(on)
- 65mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.313 g
Overview
Applications
- Motor Drive - Battery Protection - Synchronous Rectification
Key features
- Compact package (3.3 x 3.3 mm) for space-constrained designs
- Low on-resistance RDS(on) minimizes conduction losses
- Low capacitance minimizes driving losses
- NVTFWS070N10MCL - solderable flank variant
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC600N25NS3G#C3288852Infineon · TDSON-8 | Infineon | TDSON-8 | 730 | ₹284.91 · 730 in stock | View |
| NTTFS080N10GTAG#C5208128onsemi · WDFN-8 | onsemi | WDFN-8 | 53 | ₹240.73 · 53 in stock | View | |
 | ISZ520N20NM6ATMA1#C22408593Infineon · TSDSON-8 | Infineon | TSDSON-8 | 134 | ₹174.33 · 134 in stock | View |
 | STL45N60DM6#C2971422ST · VDFN-8-Power | ST | VDFN-8-Power | 16 | ₹2,097.80 · 16 in stock | View |
 | IAUC24N10S5L300ATMA1#C3278671Infineon · TDSON-8 | Infineon | TDSON-8 | 115 | ₹136.34 · 115 in stock | View |
