HXY MOSFETDatasheet (PDF)

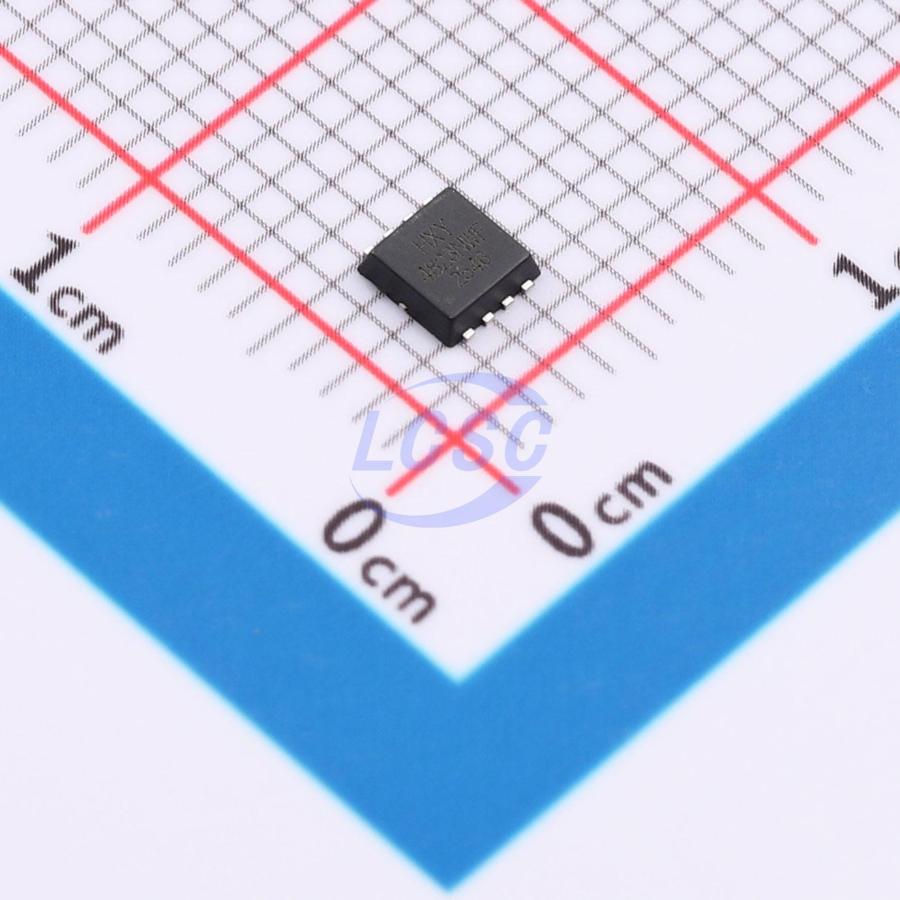

NVTFS4823NWFTWG-HXY
37.5W 30V 35A 7.5mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NVTFS4823NWFTWG-HXY
- Store part #
- C53263366
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C53263366
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.80 | ₹63.80 |
| 10+ | ₹51.12 | ₹511.20 |
| 30+ | ₹45.54 | ₹1,366.20 |
| 100+ | ₹38.88 | ₹3,888.00 |
| 500+ | ₹35.87 | ₹17,935.00 |
| 1,000+ | ₹33.93 | ₹33,930.00 |
1 × ₹63.80
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVTFS4823NWFTWG-HXY
₹63.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 131pF
- Ciss-Input Capacitance
- 940pF
- Pd - Power Dissipation
- 37.5W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 109pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.069 g
