onsemiDatasheet (PDF)

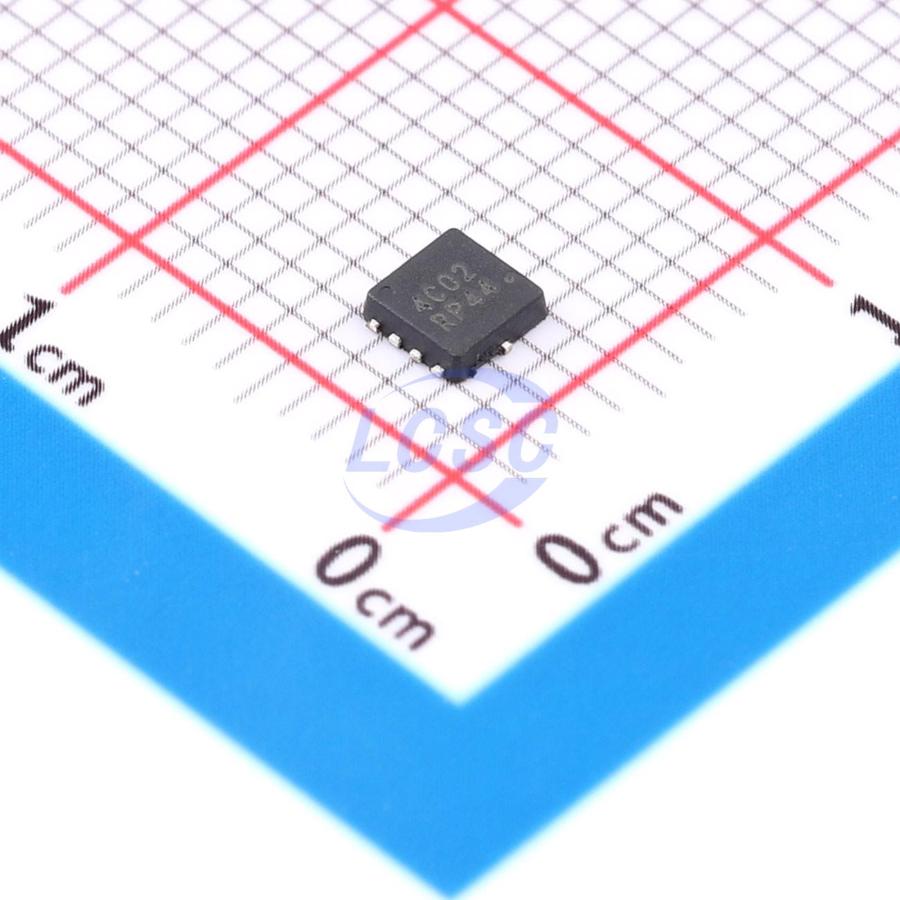

NVTFS4C02NTAG
107W 30V 162A 3.1mΩ@4.5V 1 N-channel N-Channel WDFN-8(3x3) Single FETs, MOSFETs RoHS
WDFN-8(3x3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS4C02NTAG
- Store part #
- C2902060
- Package / case
- WDFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2902060
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹475.70 | ₹475.70 |
| 10+ | ₹464.86 | ₹4,648.60 |
| 30+ | ₹457.71 | ₹13,731.30 |
| 100+ | ₹450.34 | ₹45,034.00 |
1 × ₹475.70
₹475.70
excl. GST
₹561.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVTFS4C02NTAG
₹475.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.2nF
- Ciss-Input Capacitance
- 2.98nF
- Pd - Power Dissipation
- 107W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 162A
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 3.1mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.61 g
Overview
Applications
- Reverse Battery Protection
- DC−DC Converter Output Driver
Key features
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- Optimized Gate Charge to Minimize Switching Losses
- NVTFS4C02NWF − Wettable Flanks Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSZ165N04NS G-VB#C7568986VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 62 | ₹112.79 · 62 in stock | View |
 | S150N03D#C23377922HL · PDFN-8L(3x3) | HL | PDFN-8L(3x3) | 770 | ₹30.87 · 770 in stock | View |
 | AON7140#C2758662AOS · DFN-8(3x3) | AOS | DFN-8(3x3) | 2,634 | ₹131.47 · 2,634 in stock | View |
 | AON7240-VB#C20626353VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | On request | ₹118.65 · 0 in stock | View |
