onsemiDatasheet (PDF)

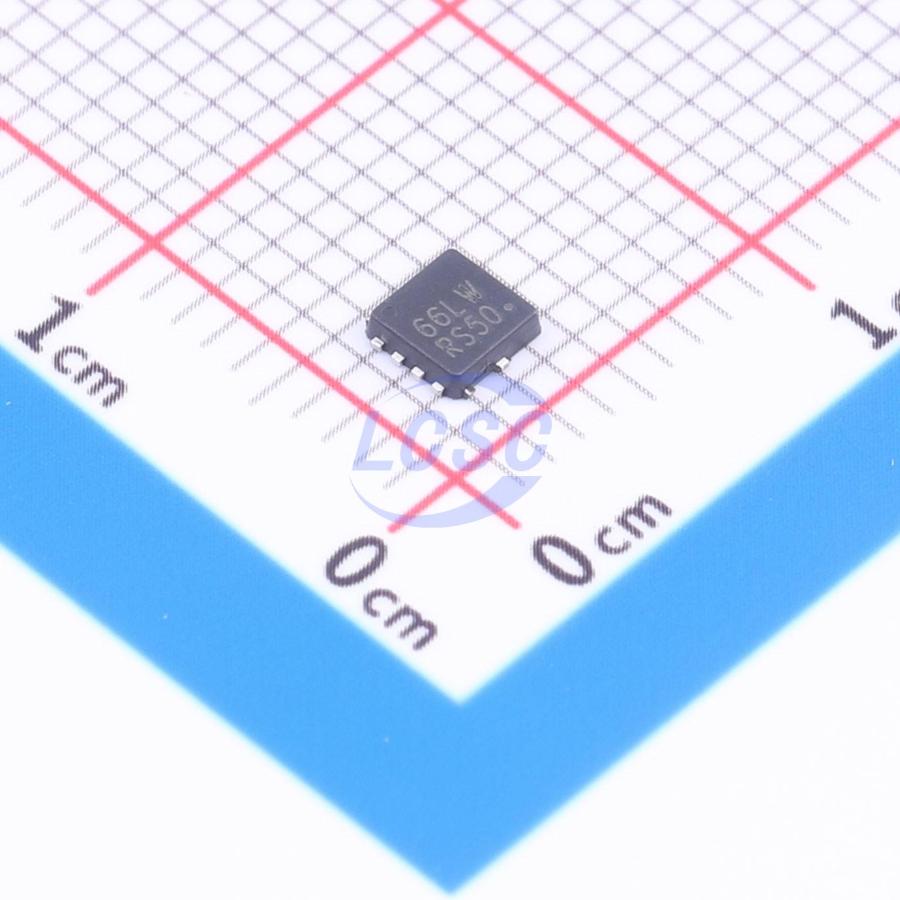

NVTFS5C466NLWFTAG
38W 40V 51A 6.1mΩ@10V 1 N-channel N-Channel WDFN-5(3.3x3.3) Single FETs, MOSFETs RoHS
WDFN-5(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS5C466NLWFTAG
- Store part #
- C604642
- Package / case
- WDFN-5(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C604642
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹316.55 | ₹316.55 |
| 10+ | ₹309.19 | ₹3,091.90 |
| 30+ | ₹304.41 | ₹9,132.30 |
| 100+ | ₹299.65 | ₹29,965.00 |
1 × ₹316.55
₹316.55
excl. GST
₹373.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVTFS5C466NLWFTAG
₹316.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 340pF
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 38W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 51A
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 6.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
Key features
- Small Footprint (3.3 x 3.3 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low Capacitance to Minimize Driver Losses
- NVTFS5C466NLWF − Wettable Flanks Product
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
