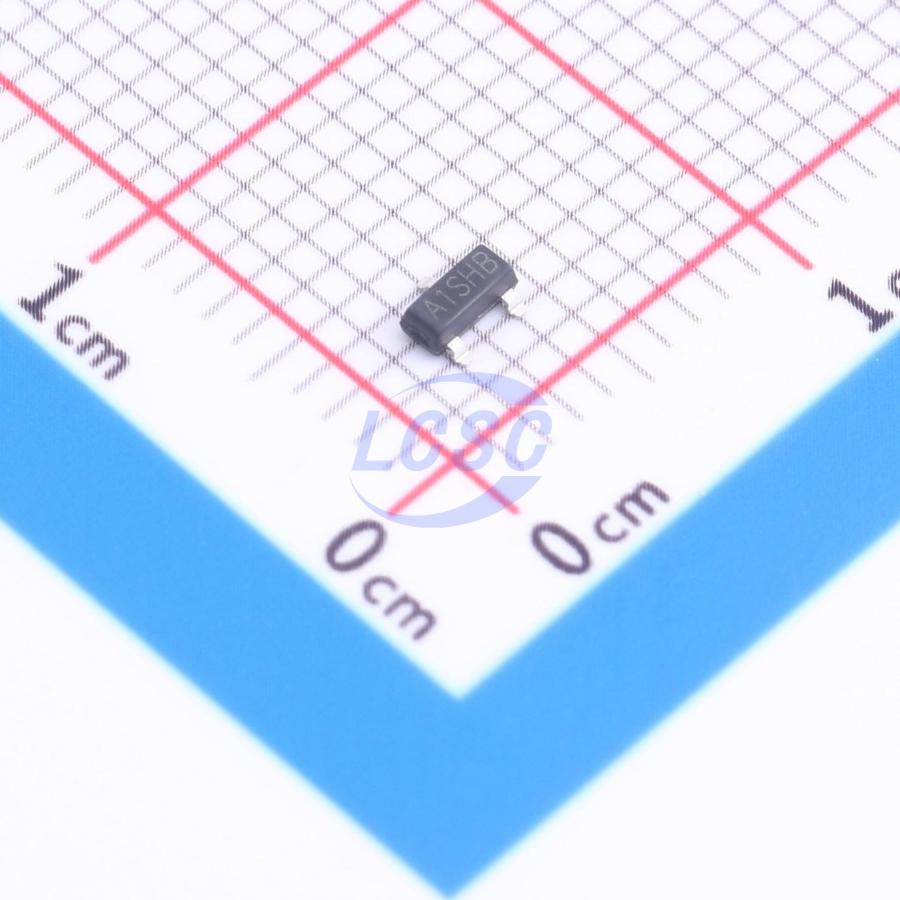

HXY MOSFETDatasheet (PDF)
NXV65UPR-HXY
20V 3A 1W 60mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NXV65UPR-HXY
- Store part #
- C54582405
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C54582405
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.55 | ₹85.50 |
| 100+ | ₹6.88 | ₹688.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 3,000+ | ₹4.91 | ₹14,730.00 |
| 6,000+ | ₹4.41 | ₹26,460.00 |
| 9,000+ | ₹4.15 | ₹37,350.00 |
10 × ₹8.55
₹85.50
excl. GST
₹100.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NXV65UPR-HXY
₹85.50 for 10 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3A
- Output Capacitance(Coss)
- 75pF
- Pd - Power Dissipation
- 1W
- RDS(on)
- 60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 3.3nC@2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
NXV65UPR utilizes advanced trench technology to deliver excellent on-state resistance RDS(ON). The device is suitable for use as a load switch or in PWM applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = -20V, ID = -3A
- RDS(ON) < 80mΩ (at VGS = -4.5V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMV65XP-HXY#C22366449HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 40 | ₹5.58 · 40 in stock | View |
 | SM2301SRL-HXY#C22366450HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 110 | ₹5.40 · 110 in stock | View |
 | DMP2170U-HXY#C22366451HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 20 | ₹9.78 · 20 in stock | View |
 | KMA3D7P20SA-HXY#C22366452HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 120 | ₹11.72 · 120 in stock | View |
 | ST2305-HXY#C22366453HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 40 | ₹3.86 · 40 in stock | View |
