onsemiDatasheet (PDF)

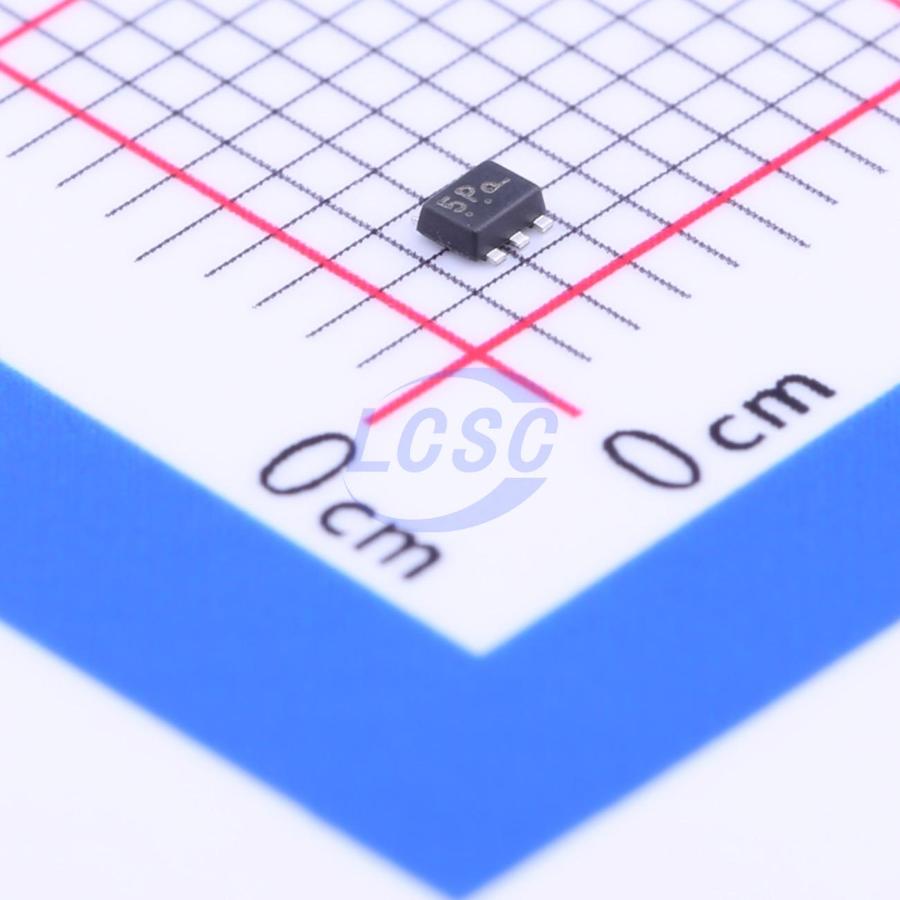

NZQA5V6AXV5T1G
13VC Clamp 1.6A@8/20us Ipp ESD DIODE SOT-553
SOT-553ROHS3 CompliantActive
ESD DIODE 3VWM 13VC SOT-553
- Manufacturer
- onsemi
- Manufacturer part #
- NZQA5V6AXV5T1G
- Store part #
- C74823
- Package / case
- SOT-553
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C74823
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.65 | ₹248.25 |
| 50+ | ₹39.15 | ₹1,957.50 |
| 150+ | ₹34.65 | ₹5,197.50 |
| 500+ | ₹29.04 | ₹14,520.00 |
| 2,500+ | ₹26.54 | ₹66,350.00 |
| 4,000+ | ₹25.03 | ₹1,00,120.00 |
5 × ₹49.65
₹248.25
excl. GST
₹292.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NZQA5V6AXV5T1G
₹248.25 for 5 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 20W
- Voltage - Breakdown
- 5.3V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
