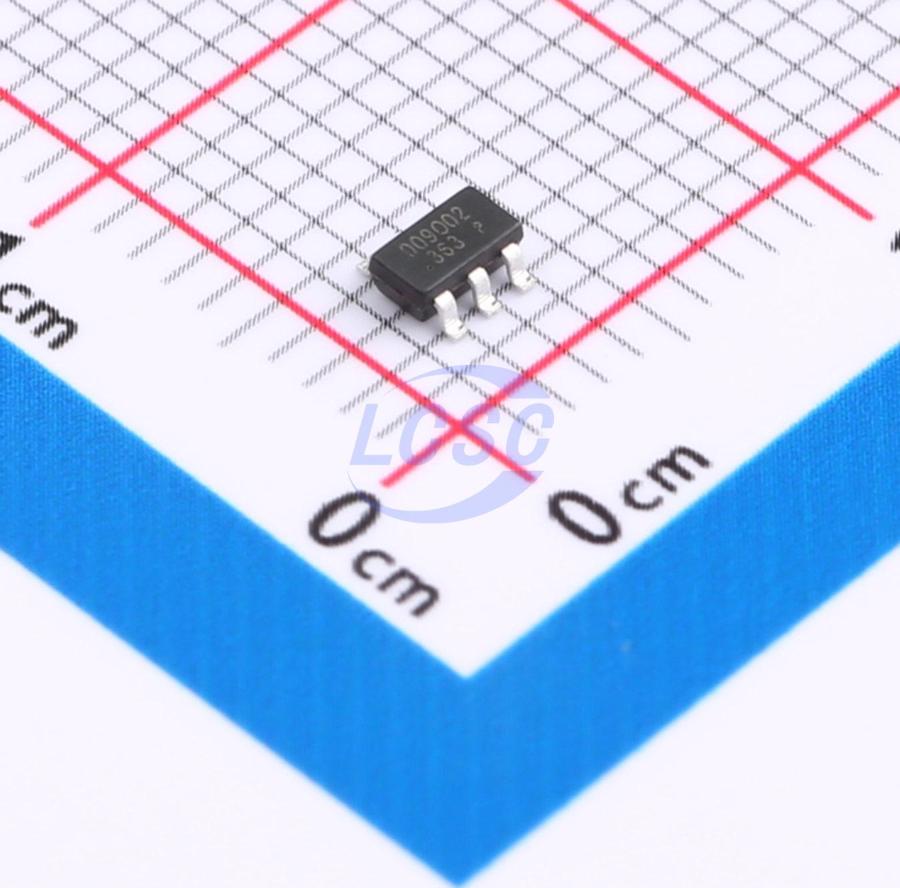

OB2009MP

3V~28V Flyback 1 AC-DC SOT-23-6 LED Drivers ICs RoHS

SOT-23-6ROHS CompliantActive

High Performance synchronous rectification controller

Manufacturer: OB
Manufacturer part #: OB2009MP
Store part #: C7428767
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C7428767

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹30.18	₹150.90
50+	₹23.39	₹1,169.50
150+	₹20.49	₹3,073.50
500+	₹16.86	₹8,430.00
3,000+	₹15.24	₹45,720.00
6,000+	₹14.28	₹85,680.00

Quantity (min 5, multiples of 5)

5 × ₹30.18

₹150.90

excl. GST

₹178.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OB2009MP

₹150.90 for 5 + GST

Specifications

Output Voltage: 3V~28V
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+150℃
Topology: Flyback
Number of Channels: 1
Type: AC-DC

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

OB2009 is a high performance and highly integrated secondary side synchronous rectification controller used for secondary side rectification in switch mode power supply system. It drives a much lower voltage drop N-channel MOSFET to emulate the traditional diode rectifier at the secondary side of flyback converter, which can reduce heat dissipation, increase output current capability and efficiency, and simplify thermal design. It can support wide range of system output voltage 3V~28V.

Applications

AC/DC 3V~28V adaptors
Low voltage rectification circuits
Flyback low side synchronous rectification
Flyback high side synchronous rectification

Key features

Up to 150V VD and VIN pin high voltage tolerance
Self-supplying for operation without the use of an auxiliary winding
Suitable for DCM, QR and CCM operation
Soft gate drive for fast turn-off
Accurate secondary side MOSFET Vds sensing
Adaptive off time control effectively avoid the ring impact induced by parasitic elements
3A/1A peak current sink/source driver capability
VDD UVLO protection
