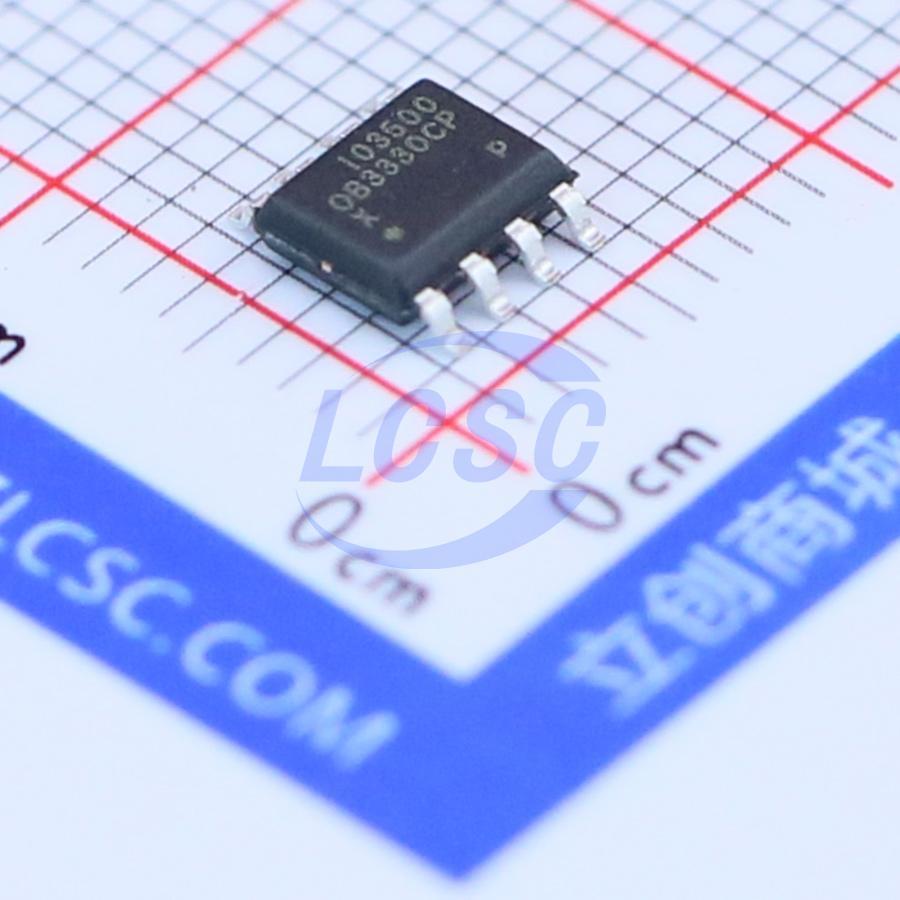

OB3330XCPA

LED Driver IC 1 Output Flyback SOP-8

SOP-8RoHSActive

High PF Primary Side Feedback LED Controller

Manufacturer: OB
Manufacturer part #: OB3330XCPA
Store part #: C97315
Package / case: SOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,112 in stock

#C97315

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹61.72	₹61.72
10+	₹48.25	₹482.50
30+	₹42.38	₹1,271.40
100+	₹35.21	₹3,521.00
500+	₹31.95	₹15,975.00
1,000+	₹29.99	₹29,990.00

Quantity (min 1)

1 × ₹61.72

₹61.72

excl. GST

₹72.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

OB3330XCPA

₹61.72 for 1 + GST

Specifications

Features: Over Voltage Protection;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 300kHz
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+150℃
Topology: Flyback
Number of Channels: 1
Type: AC-DC
Voltage - Input(DC): 30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.131 g

Overview

OB3330X is a primary-side feedback LED constant-current driver controller with high power factor correction, designed for flyback isolated LED lighting applications. Eliminates the need for secondary-side components such as TL431 and optocouplers. Operating in critical conduction mode to minimize switching losses and maximize efficiency.

Applications

Industrial and commercial LED lighting
Residential LED lighting

Key features

Single-stage PFC with primary-side feedback control
Critical conduction mode for high efficiency
Analog multiplier for power factor correction
High constant-current accuracy
Cycle-by-cycle peak current limiting with configurable threshold
Soft-start function
Ultra-low startup current (TYP. 5uA)
Minimized system design
LED open-circuit protection
LED short-circuit protection
VCC overvoltage protection
VCC undervoltage protection
Output load overvoltage protection
Over-temperature protection
Features include soft-start, power factor correction, constant-current control, zero-current detection, leading-edge blanking (LEB) built into current sense comparator, and totem-pole output driver
Comprehensive protection features including LED open/short-circuit protection, VCC overvoltage and undervoltage protection, output load overvoltage protection, cycle-by-cycle peak current limiting with user-configurable threshold, over-temperature protection, and output driver clamping for power MOSFET protection
