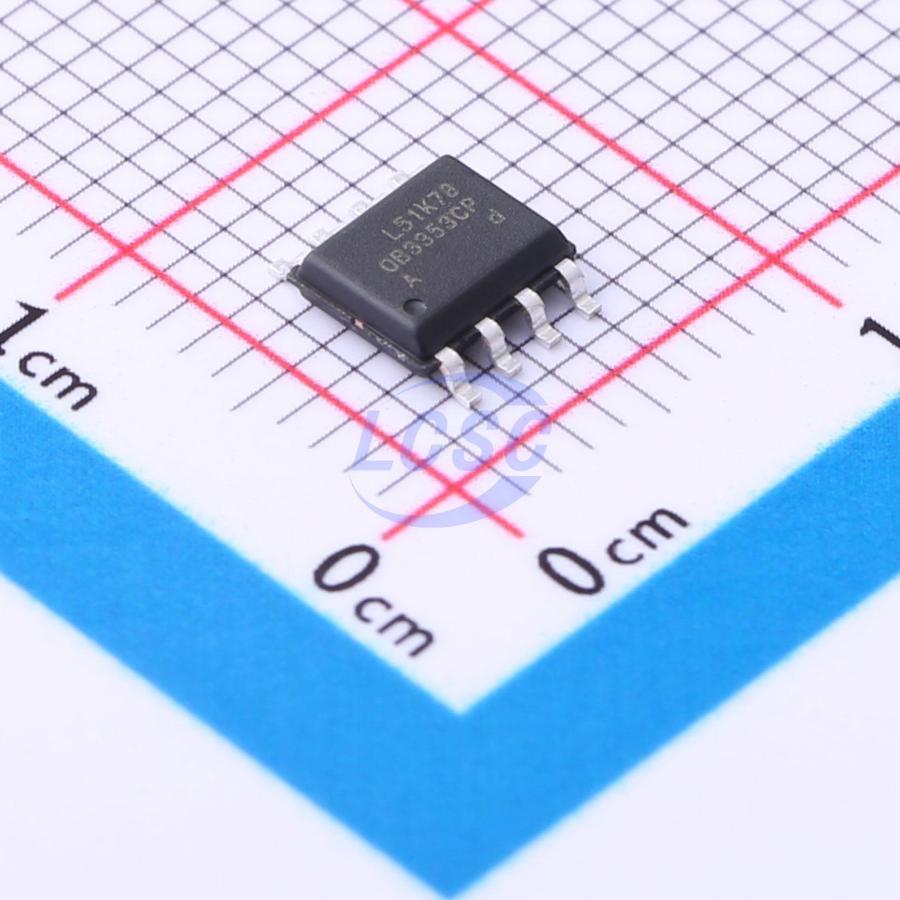

OB3353ACPA

120kHz Boost 1 DC-DC 9V~30V SOP-8 LED Drivers ICs

SOP-8RoHSActive

High performance and Cost Effective LED Controller

Manufacturer: OB
Manufacturer part #: OB3353ACPA
Store part #: C2890318
Package / case: SOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,005 in stock

#C2890318

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹29.45	₹147.25
50+	₹23.22	₹1,161.00
150+	₹20.55	₹3,082.50
500+	₹17.21	₹8,605.00
2,500+	₹15.73	₹39,325.00
4,000+	₹14.84	₹59,360.00

Quantity (min 5, multiples of 5)

5 × ₹29.45

₹147.25

excl. GST

₹173.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

OB3353ACPA

₹147.25 for 5 + GST

Specifications

Frequency - Switching: 120kHz
Features: Over Voltage Protection;Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+150℃
Topology: Boost
Number of Channels: 1
Type: DC-DC
Voltage - Input(DC): 9V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.185 g

Overview

OB3353A is a highly integrated and cost effective Light Emitting Diode (LED) driver optimized for LCD monitor and LCD TV backlighting application. It provides a high performance LED backlight solution with minimized BOM count. The OB3353A contains a PWM boost driver which uses current mode control and fixed frequency operation to regulate the LED current. The LED current is sensed through an external current sense resistor. The voltage across the sensing resistor is compared with reference level of 400mV the error is amplified to control the pulse width of the power switch thus to regulate the current flowing the LED. The OB3353A offers PWM to analog dimming method for a wide range of dimming control. The OB3353A offers comprehensive protection such as power MOSFET over current protection (OCP), output over voltage protection (OVP), Diode & Inductor short protection, LED cathode short to GND protection, IC power supply under voltage lockout (UVLO), and LED open protection.
