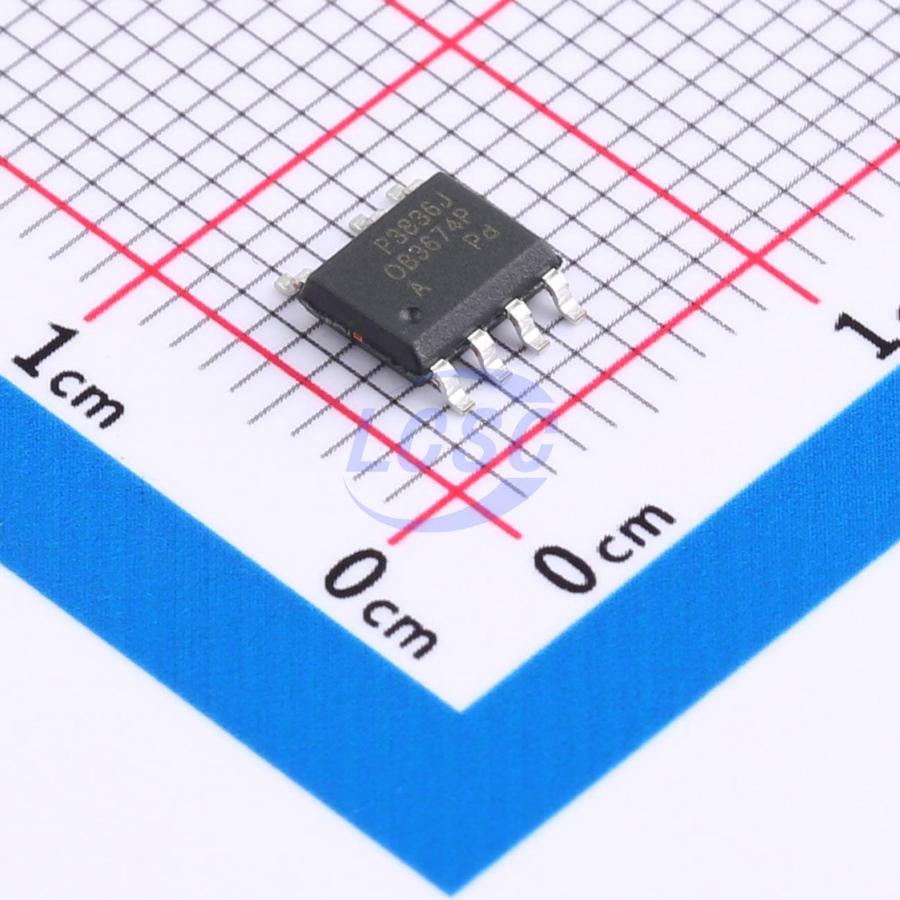

OB3674APJPA-J
230kHz 12.8V~20V SOP-7 PFC (Power Factor Correction)
High Performance PFC Power Switch
- Manufacturer
- OB
- Manufacturer part #
- OB3674APJPA-J
- Store part #
- C48392376
- Package / case
- SOP-7
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C48392376
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.44 | ₹127.20 |
| 50+ | ₹19.98 | ₹999.00 |
| 150+ | ₹17.64 | ₹2,646.00 |
| 500+ | ₹14.72 | ₹7,360.00 |
| 2,500+ | ₹13.42 | ₹33,550.00 |
| 4,000+ | ₹12.63 | ₹50,520.00 |
5 × ₹25.44
₹127.20
excl. GST
₹150.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OB3674APJPA-J
₹127.20 for 5 + GST
Specifications
- Features
- Overvoltage protection;Cycle-by-cycle overcurrent protection;Under-voltage lockout;Over temperature protection;Tracking boost function
- Frequency - Switching
- 230kHz
- standby current
- 550uA
- Type
- PFCController
- Operating Temperature
- -20℃~+85℃
- Voltage - Supply
- 12.8V~20V
- Working Mode
- CRM
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
OB3674Ax is an active transition mode power factor correction switch for AC-DC switch mode power supply applications. It integrates a demagnetization detector to ensure transition mode operation, a current sense comparator with leading edge blanking, and an input voltage detection module for automatic follower output voltage setting. OB3674Ax provides comprehensive protection features, including system OVP to eliminate output voltage runaway caused by load removal, VDD UVLO, cycle-by-cycle current limiting, and inductor short-circuit protection. With the added system open-loop protection, OB3674Ax shuts down the system when the feedback loop is open. OB3674Ax is available in SOP7 and ASOP6 packages.
Applications
- LED lighting
- AC-DC switch mode power supplies
Key features
- Follower boost or fixed boost topology with single-winding PFC inductor
- Standby power consumption <300mW
- Dynamic output OVP < 8%
- High power factor (PF > 0.95)
- Total harmonic distortion 10%
- High-accuracy constant voltage
- Inductor short-circuit protection
- Open-loop protection
- Over-temperature protection
- Fast startup (< 0.5s)
- Cycle-by-cycle current limiting
