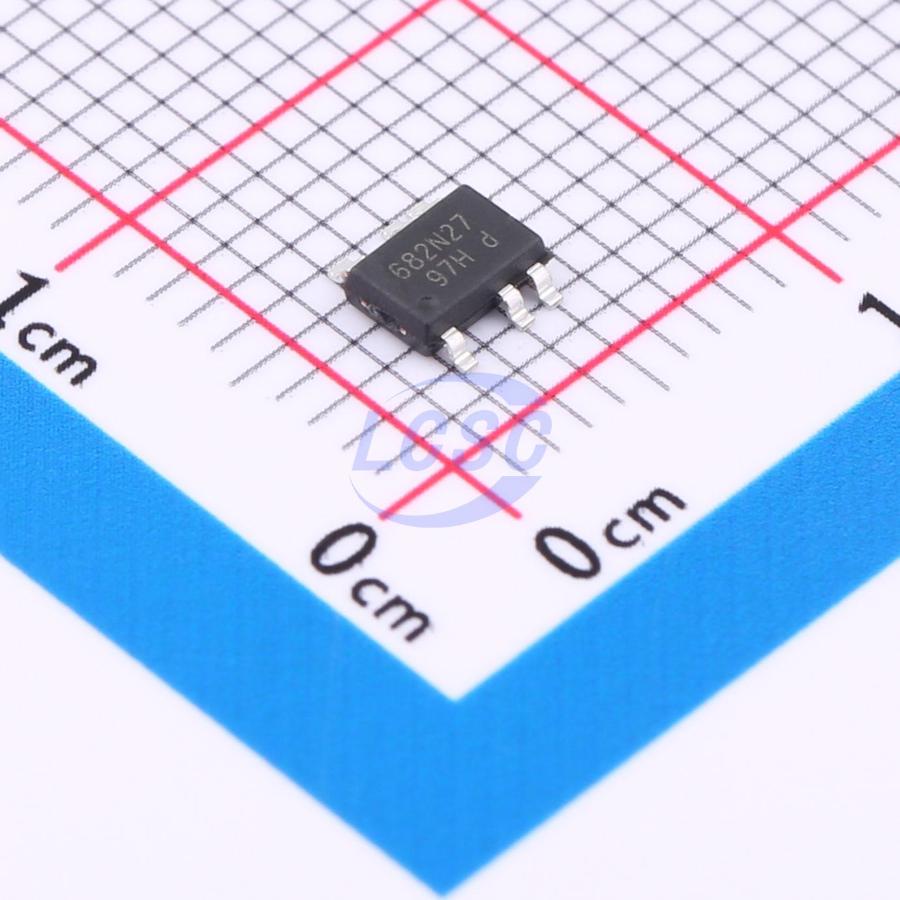

OB5682MMKP-H

Flyback 1 AC-DC SOT-33-5(A) LED Drivers ICs RoHS

SOT-33-5(A)ROHS CompliantActive

High Precision LED Off-line LED Power Switch

Manufacturer: OB
Manufacturer part #: OB5682MMKP-H
Store part #: C2924672
Package / case: SOT-33-5(A)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,970 in stock

#C2924672

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.66	₹78.30
50+	₹13.59	₹679.50
150+	₹12.70	₹1,905.00
500+	₹11.59	₹5,795.00
2,500+	₹11.09	₹27,725.00
5,000+	₹10.80	₹54,000.00

Quantity (min 5, multiples of 5)

5 × ₹15.66

₹78.30

excl. GST

₹92.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

OB5682MMKP-H

₹78.30 for 5 + GST

Specifications

Switch Tube (Built-In/External): Built-in
Voltage - Input(AC): 90VAC~264VAC
Topology: Flyback
Number of Channels: 1
Type: AC-DC

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.13 g

Overview

OB5682x is a primary side regulation off-line LED lighting power switch which can achieve accurate LED current. It significantly simplifies LED lighting system design by eliminating the secondary side feedback circuitry, HV startup resistor and power supply capacitor. LED current (CC control) can be adjusted by the external sense resistor connected between CS pin and ground. OB5682x offers comprehensive protection coverage with auto-recovery features including LED open circuit protection, LED short circuit protection, Cycle-by-Cycle current limiting, and thermal foldback, etc. OB5682x is offered in SOT33-5(A)/SOP7/DIP7/ CDFN8-7 package.
