OCXDatasheet (PDF)

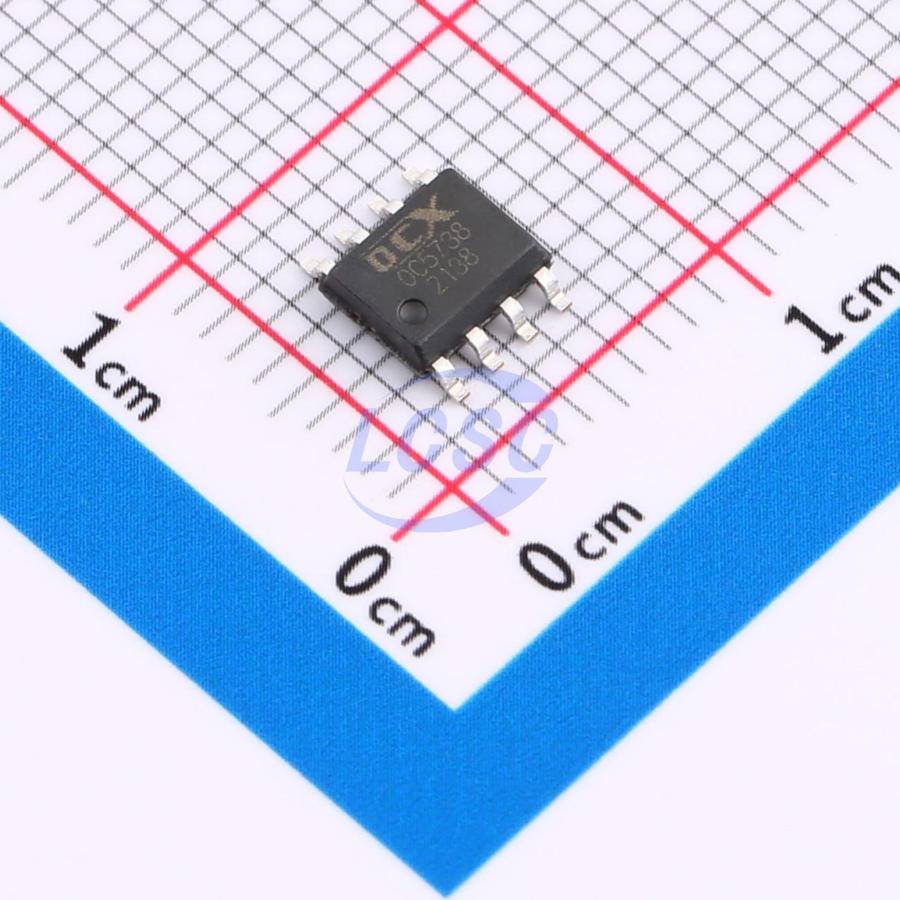

OC5738
LED Driver IC 1 Output Buck 1.2A ESOP-8
ESOP-8RoHSActive
Built-in MOS switch step-down LED constant current driver
- Manufacturer
- OCX
- Manufacturer part #
- OC5738
- Store part #
- C2988398
- Package / case
- ESOP-8
- Category
- LED Drivers ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C2988398
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.74 | ₹53.70 |
| 50+ | ₹8.48 | ₹424.00 |
| 150+ | ₹7.36 | ₹1,104.00 |
| 500+ | ₹6.51 | ₹3,255.00 |
| 2,500+ | ₹5.82 | ₹14,550.00 |
| 5,000+ | ₹5.48 | ₹27,400.00 |
5 × ₹10.74
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OC5738
₹53.70 for 5 + GST
Specifications
- Features
- Over Voltage Protection;Over-Temperature Protection (OTP)
- Frequency - Switching
- 140kHz
- Switch Tube (Built-In/External)
- Built-in
- Operating temperature
- -40℃~+85℃
- Topology
- Buck
- Number of Channels
- 1
- Output Current
- 1.2A
- Voltage - Input(DC)
- 8V~90V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
Applications
- E-bike and motorcycle lighting
- Automotive lighting
- DC or AC input LED drivers
- High-power LED lighting
- LED backlighting
Key features
- Integrated 90V MOS
- Wide input voltage range: 8V~90V
- Output current range: 100mA~1.2A
- High efficiency: up to 93%
- Operating frequency: 140KHz
- VCC undervoltage protection: 6.5V
- Average current sensing
- Intelligent over-temperature protection
- Built-in HL Zener diode
