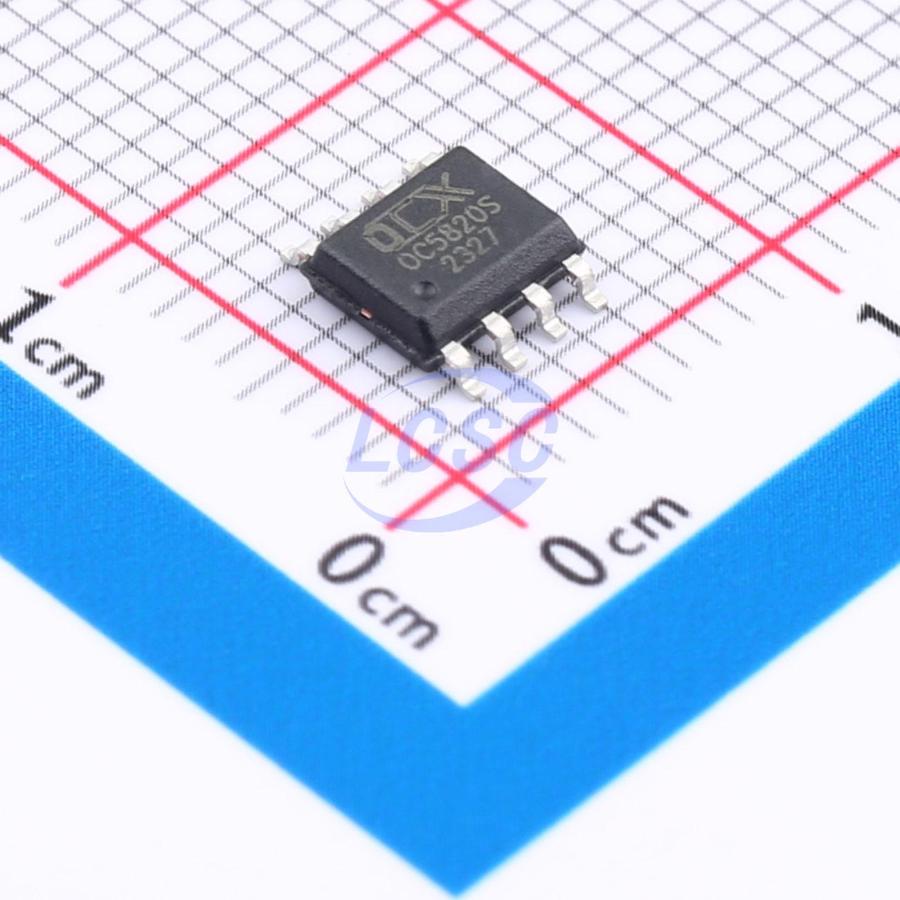

OC5820
Buck Switching Regulator IC Adjustable 1 Output 2.5A ESOP-8
ESOP-8RoHSActive
2.5A, 40V step-down converter
- Manufacturer
- OCX
- Manufacturer part #
- OC5820
- Store part #
- C19711673
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,570 in stock
#C19711673
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.80 | ₹139.00 |
| 50+ | ₹21.78 | ₹1,089.00 |
| 150+ | ₹19.20 | ₹2,880.00 |
| 500+ | ₹15.97 | ₹7,985.00 |
| 2,500+ | ₹14.54 | ₹36,350.00 |
| 4,000+ | ₹13.68 | ₹54,720.00 |
5 × ₹27.80
₹139.00
excl. GST
₹164.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OC5820
₹139.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 140kHz;450kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 6V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2.5A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
The OC5820 is a monolithic step-down switching mode converter with an integrated power MOSFET. The OC5820 delivers a maximum output current of 2.5 A over a wide input voltage range of 6 - 40V, with excellent line and load regulation. The OC5820 operates in PWM current mode, enabling easy loop stabilization and fast transient response. The OC5820 provides an external FS pin, allowing the switching frequency to be set via an external resistor. The OC5820 integrates protection features including cycle-by-cycle current limiting and thermal shutdown. The OC5820 is available in an SOP8 package with minimal external components. The OC5820 is a current mode buck regulator in which the EA output voltage is proportional to the peak inductor current. The OC5820 features a built-in 0.6ms soft-start, which prevents output voltage overshoot during startup.
Applications
- Distributed power systems
- Battery chargers
- Industrial power systems
- Dash cameras, in-vehicle chargers, robotic vacuum cleaners
Key features
- 2.5A maximum output current
- 40V/3A internal power MOSFET
- Up to 93% efficiency
- Adjustable frequency
- Thermal shutdown
- Cycle-by-cycle overcurrent protection
- Wide input voltage range: 6~40V
- SOP8 package
