OC6700B

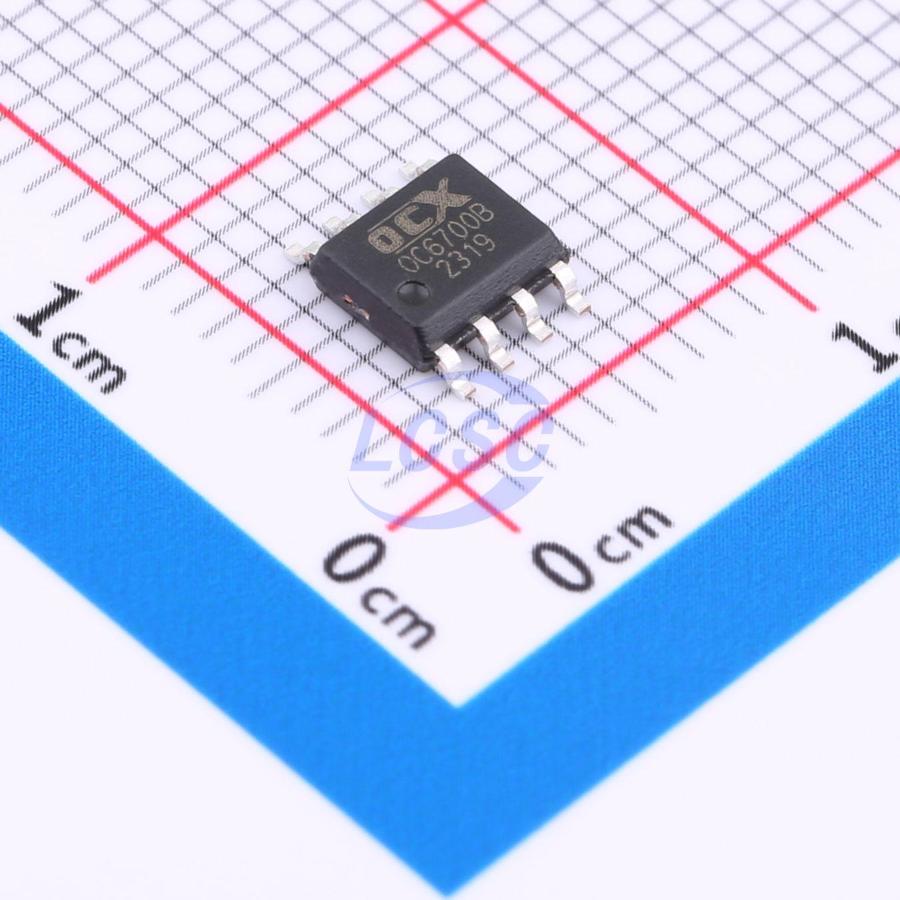

OC6700B is a boost-type high-power LED constant-current driver IC with an integrated 60V power NMOS, offering high efficiency and high accuracy. The IC employs a fixed off-time control scheme, where the off-time is adjustable via an external capacitor, allowing the operating frequency to be configured per user requirements. By adjusting the external current sense resistor, the drive current of high-brightness LEDs can be controlled to achieve the desired constant luminance. Applying a PWM signal to the EN pin enables LED dimming. The IC integrates a VDD Zener regulator, soft-start, and over-temperature protection circuitry, helping to reduce external component count and improve system reliability. OC6700B is available in an ESOP8 package, with the exposed pad internally connected to the SW pin.

Applications

• LED light cups
• LED light strings powered by one or more cells
• Flat panel display LED backlighting
• High-power LED lighting

Key features

• Wide input voltage range: 2.6V ~ 60V
• Integrated 60V power MOS
• High efficiency: up to 95%
• Maximum operating frequency: 1MHz
• FB current sensing voltage: 250mV
• VCC UVLO: 2.3V
• Adjustable off-time
• Intelligent over-temperature protection
• Soft-start
• Built-in VDD zener diode
