VBsemi ElecDatasheet (PDF)

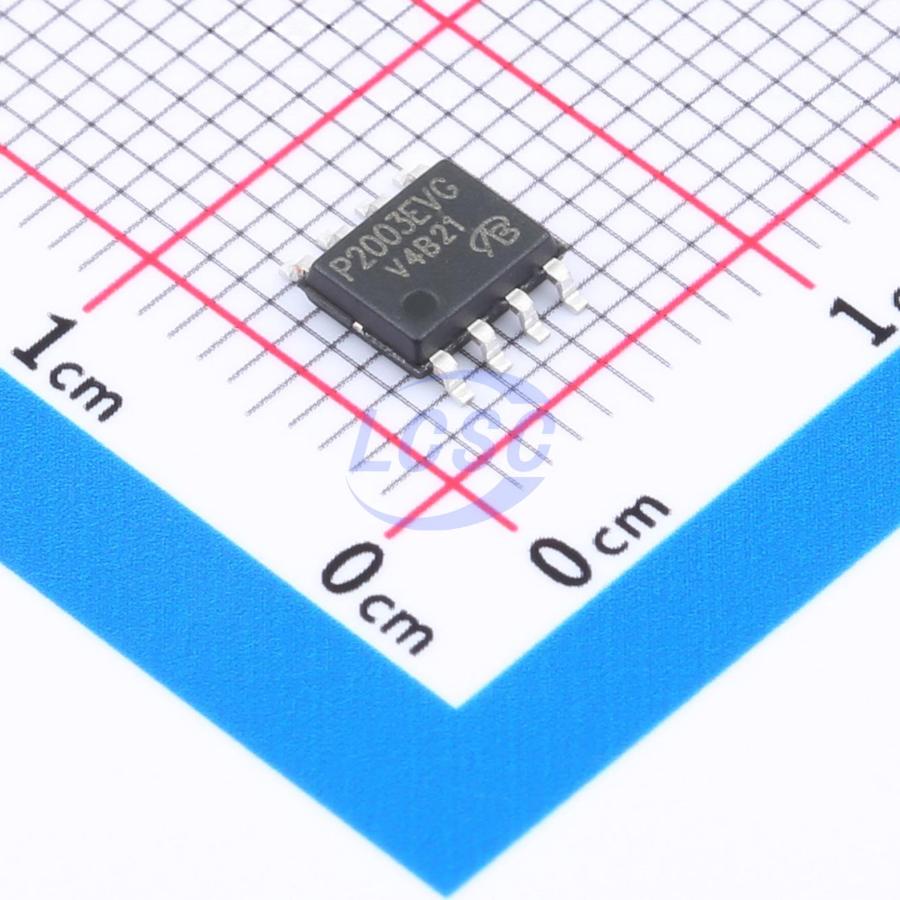

P2003EVG-VB
P-Channel 30V 9A 4.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 9A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- P2003EVG-VB
- Store part #
- C20754946
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C20754946
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.94 | ₹259.70 |
| 50+ | ₹43.27 | ₹2,163.50 |
| 150+ | ₹39.57 | ₹5,935.50 |
| 500+ | ₹34.94 | ₹17,470.00 |
| 2,500+ | ₹28.58 | ₹71,450.00 |
| 4,000+ | ₹27.33 | ₹1,09,320.00 |
5 × ₹51.94
₹259.70
excl. GST
₹306.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P2003EVG-VB
₹259.70 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 1.455nF
- Pd - Power Dissipation
- 4.2W
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 18mΩ@10V;24mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
