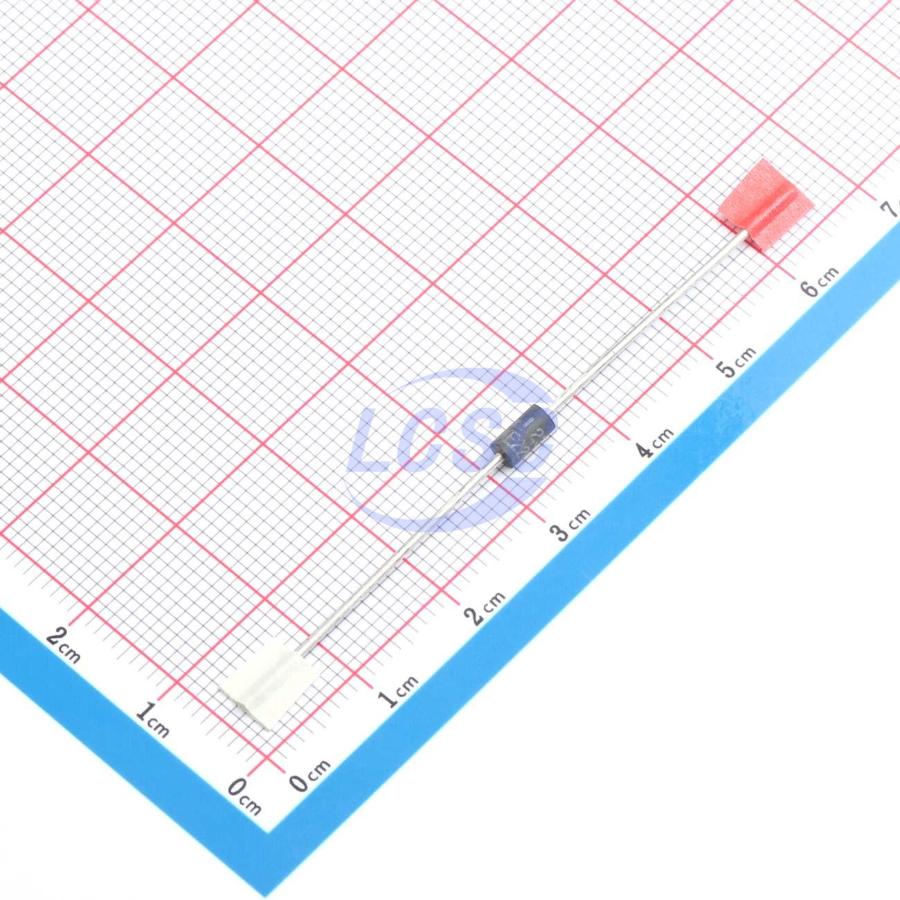

P4KE220CA

The P4KE Series is designed specifcally to protect sensitive electronic equipment from EFTs, ESD, and induced lightning transients.

Applications

• TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial ICT equipment and consumer electronic applications.

Key features

• 400W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %
• Glass passivated chip junction in DO-41 Package
• Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• Excellent clamping capability
• Typical failure mode is a short circuit
• Whisker test is conducted per Table 4a/4c of JEDEC JESD201A
• IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
• EFT protection of data lines in accordance with IEC 61000-4-4
• Low incremental surge resistance
• Typical IR ≤ 1 μA for VBR min >12.6V
• High temperature refow soldering guaranteed: 260°C/30sec /0.375"(9.5mm) lead length, 5 lbs., (2.3kg) tension
• VBR @TJ = VBR @25°C × (1 + αT × (TJ - 25)) (αT:Temperature Coeffcient, typical value is 0.1 %)
• UL Recognized compound meeting fammability rating V-0
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pbfree and the terminal fnish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
