LittelfuseDatasheet (PDF)

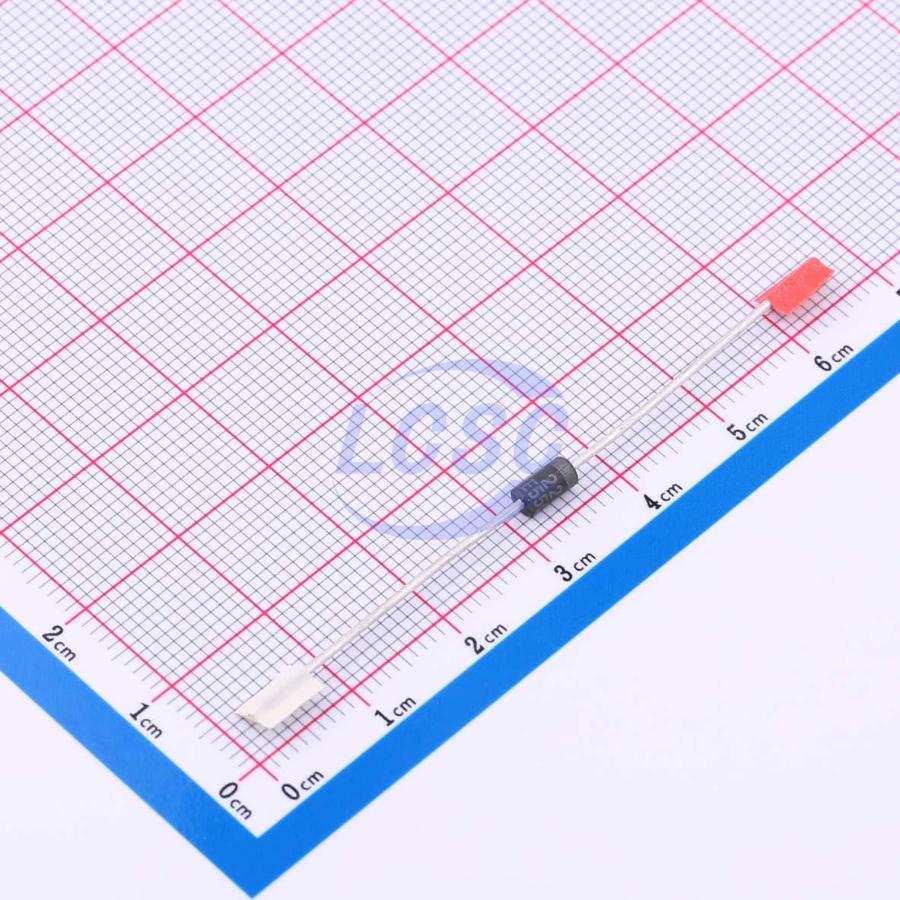

P4KE550A
760VC Clamp 520mA Ipp TVS DIODE DO-41(DO-204AL)
DO-41(DO-204AL)ROHS3 CompliantActive
TVS DIODE 495VWM 760VC DO-41(DO-204AL)
- Manufacturer
- Littelfuse
- Manufacturer part #
- P4KE550A
- Store part #
- C1975383
- Package / case
- DO-41(DO-204AL)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C1975383
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.53 | ₹128.53 |
| 10+ | ₹104.72 | ₹1,047.20 |
| 30+ | ₹93.01 | ₹2,790.30 |
| 100+ | ₹81.10 | ₹8,110.00 |
| 500+ | ₹74.11 | ₹37,055.00 |
| 1,000+ | ₹70.42 | ₹70,420.00 |
1 × ₹128.53
₹128.53
excl. GST
₹151.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4KE550A
₹128.53 for 1 + GST
Specifications
- Clamping Voltage
- 760V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 520mA
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 522.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 495V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.06 g
Overview
The P4KE Series is designed specifcally to protect sensitive electronic equipment from EFTs, ESD, and induced lightning transients.
Applications
- TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial ICT equipment and consumer electronic applications.
Key features
- 400W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %
- Glass passivated chip junction in DO-41 Package
- Fast response time: typically less than 1.0ps from 0 Volts to VBR min
- Excellent clamping capability
- Typical failure mode is a short circuit
- Whisker test is conducted per Table 4a/4c of JEDEC JESD201A
- IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Low incremental surge resistance
- Typical IR ≤ 1 μA for VBR min >12.6V
- High temperature refow soldering guaranteed: 260°C/30sec /0.375"(9.5mm) lead length, 5 lbs., (2.3kg) tension
- VBR @TJ = VBR @25°C × (1 + αT × (TJ - 25)) (αT:Temperature Coeffcient, typical value is 0.1 %)
- UL Recognized compound meeting fammability rating V-0
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pbfree and the terminal fnish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
