LittelfuseDatasheet (PDF)
P4SMA10CA

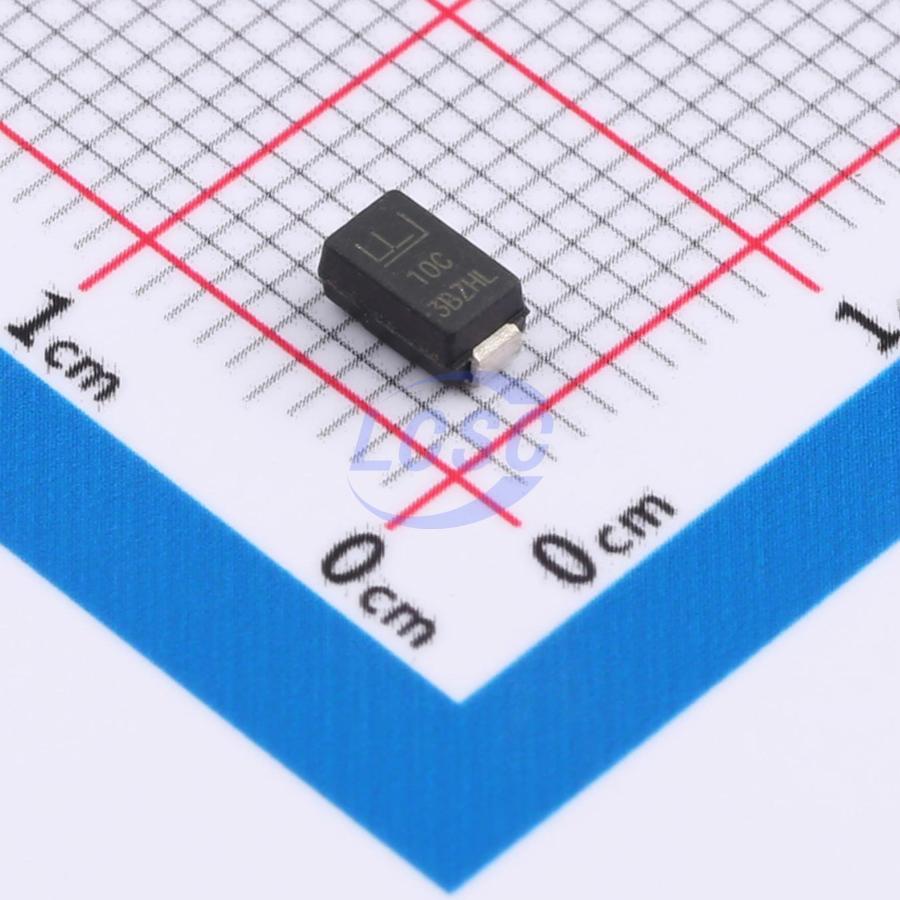

14.5VC Clamp 28.3A@10/1000us Ipp TVS DIODE DO-214AC
DO-214ACROHS3 CompliantActive
TVS DIODE 8.55VWM 14.5VC DO-214AC
- Manufacturer
- Littelfuse
- Manufacturer part #
- P4SMA10CA
- Store part #
- C7427485
- Package / case
- DO-214AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
510 in stock
#C7427485
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.95 | ₹89.75 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹12.57 | ₹1,885.50 |
| 500+ | ₹11.22 | ₹5,610.00 |
| 2,500+ | ₹10.15 | ₹25,375.00 |
| 5,000+ | ₹9.60 | ₹48,000.00 |
5 × ₹17.95
₹89.75
excl. GST
₹105.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4SMA10CA
₹89.75 for 5 + GST
Specifications
- Clamping Voltage
- 14.5V
- Peak Pulse Current (Ipp)
- 28.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 9.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 10uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8.55V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
The P4SMA series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Key features
- 400W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- Excellent clamping capability
- Typical IR less than 1μA when VBR min>12V
- Surface mount footprint for compact PCB layout
- Low profile package
- Typical failure mode due to exceeding maximum ratings is a short circuit condition
- Whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
- IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
- Built-in strain relief
- Fast response time: typically less than 1.0ps from 0V to BV min
- UL Recognized epoxy meeting flammability classification V-0 change to Plastic package is flammability rated V-0 per UL-94
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin, lead–free plated
- Halogen-free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
