LittelfuseDatasheet (PDF)

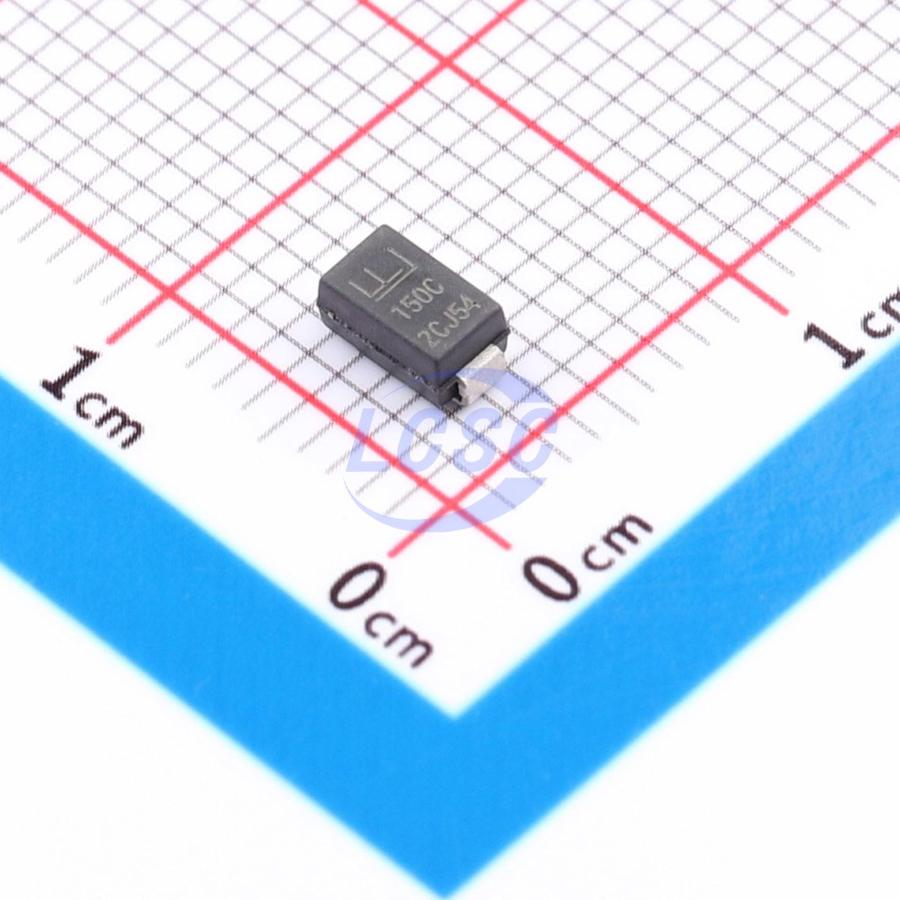

P4SMA150CA
207VC Clamp 2A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- P4SMA150CA
- Store part #
- C1976732
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C1976732
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.30 | ₹176.50 |
| 50+ | ₹34.90 | ₹1,745.00 |
| 150+ | ₹34.65 | ₹5,197.50 |
| 500+ | ₹34.38 | ₹17,190.00 |
5 × ₹35.30
₹176.50
excl. GST
₹208.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4SMA150CA
₹176.50 for 5 + GST
Specifications
- Clamping Voltage
- 207V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 2A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 143V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 128V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
