EATONDatasheet (PDF)

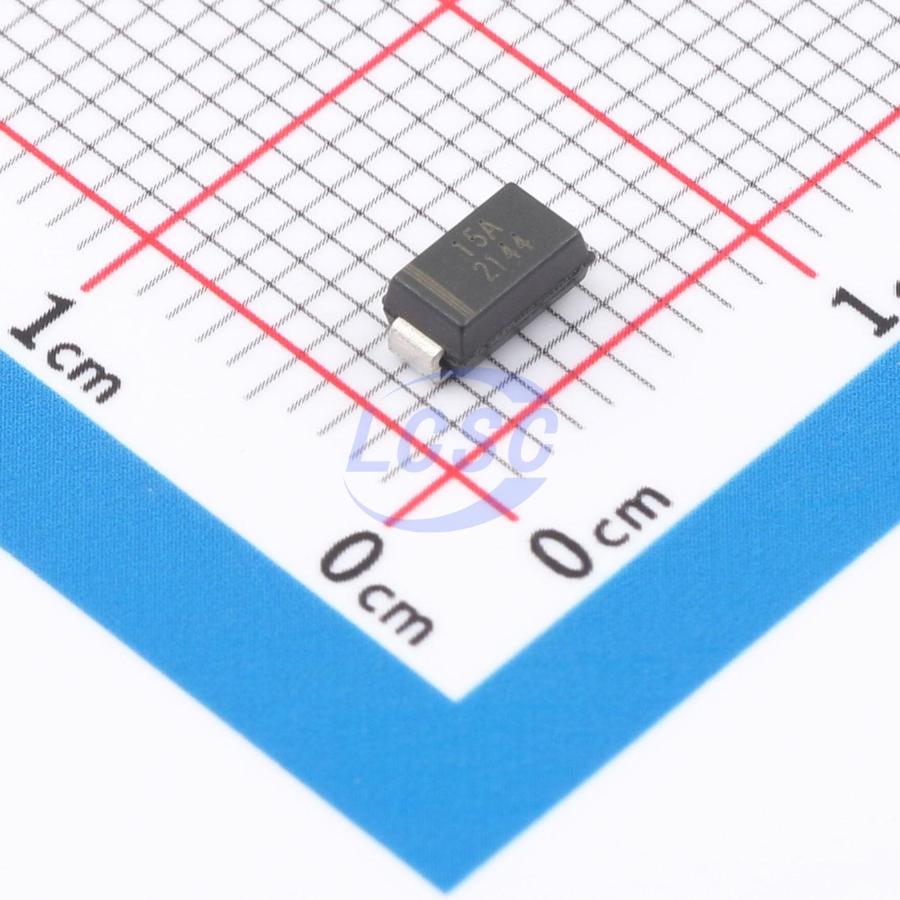

P4SMA15A
21.2V 19.3A 400W@10/1000us 14.3V Unidirectional 12.8V DO-214AC TVS Diodes RoHS
DO-214ACROHS3 CompliantActive
- Manufacturer
- EATON
- Manufacturer part #
- P4SMA15A
- Store part #
- C37272851
- Package / case
- DO-214AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
490 in stock
#C37272851
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.03 | ₹135.15 |
| 50+ | ₹26.45 | ₹1,322.50 |
| 150+ | ₹26.06 | ₹3,909.00 |
| 500+ | ₹25.68 | ₹12,840.00 |
5 × ₹27.03
₹135.15
excl. GST
₹159.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4SMA15A
₹135.15 for 5 + GST
Specifications
- Clamping Voltage
- 21.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 19.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Voltage - Breakdown
- 14.3V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Applications
- Consumer Electronics - Telecommunications - Computers & Servers - Home Appliances - Industrial Automation - Mobile Devices & Wearables
Key features
- Low-profile SMA package
- Excellent clamping capability
- 400 W peak pulse power capability under 10/1000 μs waveform
- Typical reverse current (IR) less than 1 μA above 12 V
- Fast response time: from 0 V to minimum breakdown voltage (VBR) typically less than 1.0 ps
- High-temperature reflow soldering: +260 °C / 40 s at leads
- Plastic package meets UL 94 V-0 flammability rating
- Compliant with Moisture Sensitivity Level (MSL) 1
- Leads: tin-plated, meets J-STD-002 solderability requirements
- Surface mount application optimizing board space
- UL 497B recognized. File No.: E198449, Guide QVGQ2
