VISHAYDatasheet (PDF)

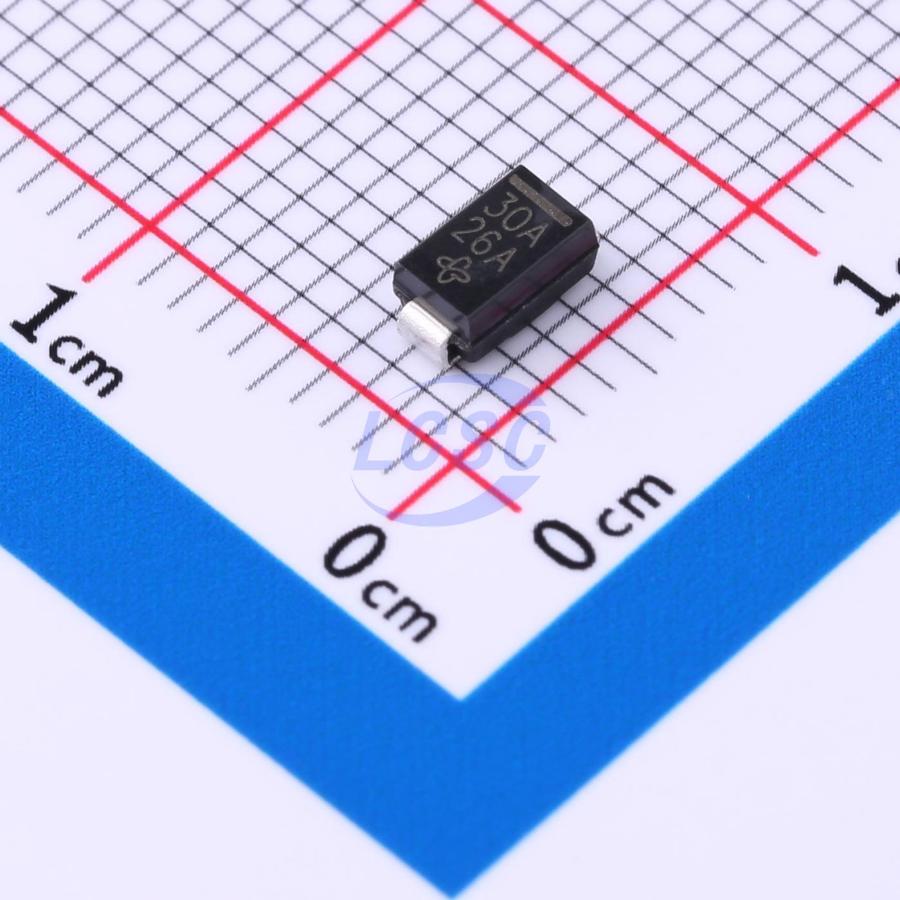

P4SMA30A-E3/61
41.4VC Clamp 9.7A@10/1000us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 25.6VWM 41.4VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- P4SMA30A-E3/61
- Store part #
- C1973297
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1973297
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.74 | ₹143.70 |
| 50+ | ₹22.65 | ₹1,132.50 |
| 150+ | ₹20.04 | ₹3,006.00 |
| 500+ | ₹16.80 | ₹8,400.00 |
| 1,800+ | ₹15.35 | ₹27,630.00 |
| 5,400+ | ₹14.49 | ₹78,246.00 |
5 × ₹28.74
₹143.70
excl. GST
₹169.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
P4SMA30A-E3/61
₹143.70 for 5 + GST
Specifications
- Clamping Voltage
- 41.4V
- Peak Pulse Current (Ipp)
- 9.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 25.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni- directional and bi- directional
- 400 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle): 0.01% (300 W above 91 V)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J- STD- 020, LF maximum peak of 260℃
- AEC- Q101 qualified available
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P4SMA30A#C19272955LGE · SMA | LGE | SMA | 1,100 | ₹11.46 · 1,100 in stock | View |
 | P4SMA30A(MS)#C19632029MSKSEMI · SMA | MSKSEMI | SMA | 1,670 | ₹6.87 · 1,670 in stock | View |
 | SMAJ26A#C148225Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 20,030 | ₹22.48 · 20,030 in stock | View |
 | SMAJ26A#C19077543R+O · DO-214AC(SMA) | R+O | DO-214AC(SMA) | 3,35,800 | ₹4.84 · 3,35,800 in stock | View |
 | SMAJ26A-E3/61#C1973254VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 5,160 | ₹13.88 · 5,160 in stock | View |
