LittelfuseDatasheet (PDF)

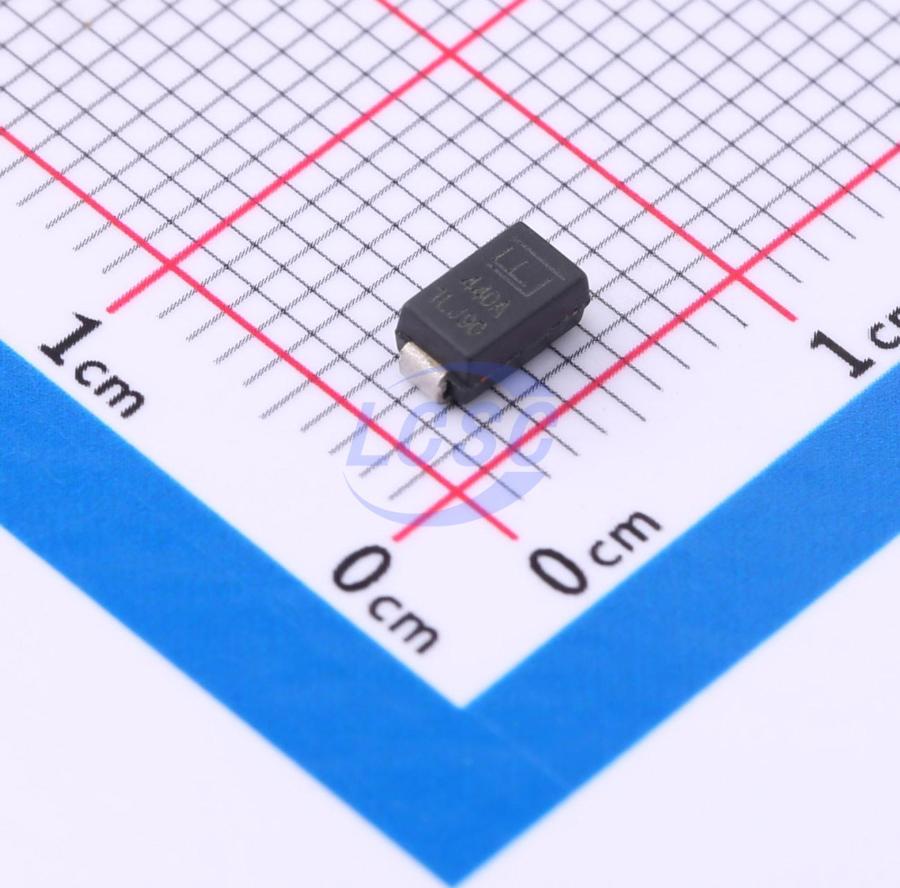

P4SMA440A
602VC Clamp 0.9A Ipp TVS DIODE DO-214AC
DO-214ACROHS3 CompliantActive
TVS DIODE 376VWM 602VC DO-214AC
- Manufacturer
- Littelfuse
- Manufacturer part #
- P4SMA440A
- Store part #
- C151200
- Package / case
- DO-214AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
925 in stock
#C151200
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.26 | ₹161.30 |
| 50+ | ₹25.62 | ₹1,281.00 |
| 150+ | ₹22.76 | ₹3,414.00 |
| 500+ | ₹19.21 | ₹9,605.00 |
| 2,500+ | ₹17.62 | ₹44,050.00 |
| 5,000+ | ₹16.68 | ₹83,400.00 |
5 × ₹32.26
₹161.30
excl. GST
₹190.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4SMA440A
₹161.30 for 5 + GST
Specifications
- Clamping Voltage
- 482V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 900mA
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 368V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 300V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
