LittelfuseDatasheet (PDF)

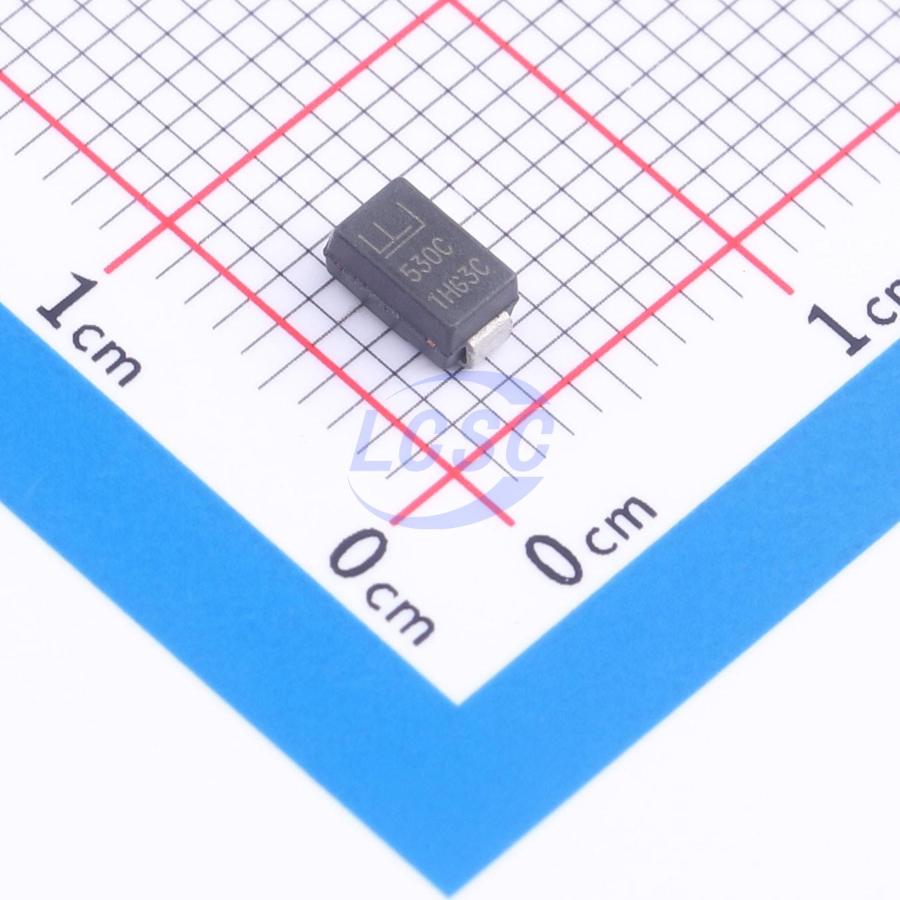

P4SMA530CA
725V 900mA 600W@10/1000us 556.5V Bidirectional 451V DO-214AC TVS Diodes RoHS
DO-214ACROHS CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- P4SMA530CA
- Store part #
- C22404073
- Package / case
- DO-214AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
162 in stock
#C22404073
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.78 | ₹120.78 |
| 10+ | ₹118.82 | ₹1,188.20 |
| 30+ | ₹117.52 | ₹3,525.60 |
| 100+ | ₹116.23 | ₹11,623.00 |
1 × ₹120.78
₹120.78
excl. GST
₹142.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4SMA530CA
₹120.78 for 1 + GST
Specifications
- Clamping Voltage
- 725V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 900mA
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Voltage - Breakdown
- 556.5V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 451V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.102 g
Overview
The P4SMA series is designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.
Applications
- TVS devices are ideal for protecting I/O interfaces, VCC buses, and other susceptible circuits in telecommunications, computing, industrial, and consumer electronics applications.
Key features
- 400W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle) of 0.01%
- SMD low-profile surface mount package, minimizing PCB footprint
- Typical failure mode is short circuit due to overvoltage or overcurrent
- Whisker testing per Table 4a and 4c of JEDEC JESD201A, passing Level 1 and Level 2
- IEC 61000-4-2 ESD: 30kV (air), 30kV (contact)
- Glass passivated chip junction
- Low dynamic resistance
- VBR@TJ = VBR@25°C × (1 + G̅T̅ × (T̅J̅ - 25)) (αT: temperature coefficient, typical value 0.1%)
- UL94 V-0 flammability rated approved compound
- Halogen-free and RoHS compliant
- Lead-free E3: second-level interconnect lead-free, terminal finish material tin (Sn) (per IPC/JEDEC J-STD-609A.01)
- Recognized by UL 497B as isolated loop circuit protector
- Products manufactured outside China available (parts with E suffix)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ440CA#C151244Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 5,195 | ₹37.14 · 5,195 in stock | View |
| SMAJ440CE3/TR13#C3701488MICROCHIP · DO-214AC(SMA) | MICROCHIP | DO-214AC(SMA) | On request | ₹26.29 · 0 in stock | View | |
| SMAJ440CAE3/TR13#C3699648MICROCHIP · DO-214AC(SMA) | MICROCHIP | DO-214AC(SMA) | On request | ₹26.29 · 0 in stock | View | |
